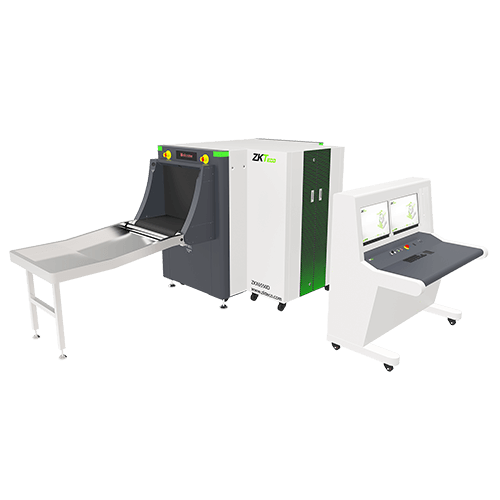

ZKX6550D is a dual view x-ray security inspection equipment. ZKX6550D could display horizontal and vertical images by two independent generators, and could detect organic, inorganic or mixtures quickly according to the effective atomic number of objects those are been detected. ZKX6550D could identify overlapping items and contraband easily and precisely.
ZKX6550D X-ray inspection system increases the operator's ability to identify potential threats; the device is designed to scan carry-on baggage. ZKX6550D uses reliable high quality X-ray generator and the superb image algorithm.
ZKX6550D has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password.
With ergonomic modern design, ZKX6550D could help operators to identify suspicious items fast and accurately.
المواصفات الفنية (Parameters)
Parameters
-
Tunnel Size
W650mm × H500mm
-
Speed
0.20 m/s
-
Height of Transmission Belt
650 mm
-
Maximum Load
≤180 kg (Adequate distribution)
-
Wire Resolution
Bottom Generator: 38AWG Side Generator: 38AWG
-
Space Definition
Horizontal Φ1.0mm Vertical Φ2.0mm
-
Penetrate Definition
Bottom Generator: 32AWG Side Generator:32AWG
-
Penetration
Bottom Generator: 38mm Side Generator: 38mm
-
Monitor
21.5 inch LED x 2
-
System Function
High density alert, Explosive / Drug auxiliary detect,TIP, Luggage counter, date/time display, User management, Training.
-
Film Safety
ASA / ISO1600 standard of film safety
-
X-ray System
-
Tube Voltage
140KV
-
Cooling
Seal oil cooling / 100%
-
Single Inspection Dosage Rate
≤1.0 μ Gy
-
Radiation Leak Dosage
0.1 μ Gy/h (5cm from the surface)
-
Installation Specification
-
Size (L*W*H)
2350mm × 1320mm × 1332mm
-
Console Desk Size (L*W*H)
1320mm × 900mm × 1320mm
-
Package Size
2500mm × 1600mm × 1550mm
-
Package Weight
1000KG+135KG (Console desk)
-
Power Consumption
1.5 kVA
-
Noise
55 dB(A)
