ZKX6550

ZKX6550

0,00 EGP

10 متوفر في المخزون

SKU: ZKX6550

تحميل ورقة البيانات (Download Datasheet PDF)

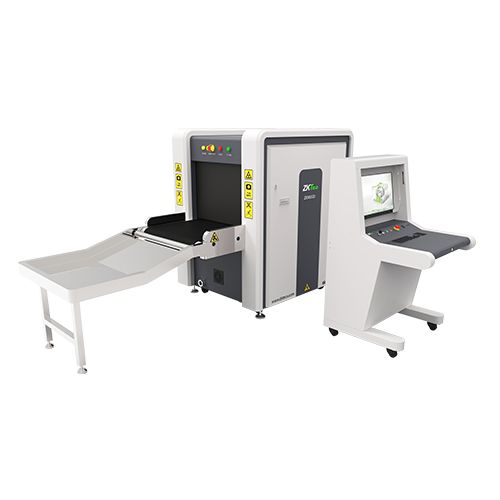

ZKX6550
ZKX6550 X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry-on baggage, small cargo parcels.
ZKX6550 uses reliable high quality dual energy X-ray generator. With the superb image algorithm, ZKX6550 could offer clear scanning image, which allows operators to identify potential threat items visually.
ZKX6550 has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password.
With ergonomic modern design, ZKX6550 could help operators to identify suspicious items fast and accurately.

المواصفات الفنية (Parameters)

Parameters

  • General Specifications

  • Tunnel Dimensions (W*H)

    650mm * 500mm


  • Conveyor Speed

    0.20 m/sec


  • Conveyor Load

    120kg (Adequate distribution) (Max. Load)


  • Conveyor Height

    650mm


  • Detector

    Dual-energy Detector



  • View

    Single-view


  • Supported Software

    ZKBio SIS

  • Communication Interface

    RJ45(TCP/IP)


  • Dimensions (L*W*H)

    2120mm * 980mm *1381mm

  • Console Dimensions (L*W*H)

    747mm * 706mm * 1279mm


  • Package Dimensions (L*W*H)

    2395mm * 1195mm * 1680mm

  • Console Package Dimensions (L * W * H)

    890mm * 840mm * 1502mm


  • Gross Weight

    680kg+140kg (Console) (with Package)



  • Net Weight

    560kg+100kg (Console)

  • Film Safety

    ASA/ISO1600


  • Certifications

    CE-EMC, CE-MD, FCC sDOC, FDA


  • X-ray Generator & Image Performance

  • Anode Voltage

    140kV



  • Tube Current

    0.5mA


  • Wire Resolution

    36AWG


  • Steel Penetration

    30mm

  • Spatial Resolution

    HorizontalΦ1.6mm/VerticalΦ1.3mm


  • Penetration Resolution

    32AWG

  • Generator Cooling

    Sealed Oil Bath with Forced Air

  • Beam Direction

    Vertically Upward

  • X-ray converter type

    L-shaped Detector Line

  • Computer Specification

  • Operating System

    Windows 10

  • Processor

    N100

  • RAM

    8GB

  • Hard Drive

    128GB SSD + 2TB HDD

  • Max. Storage

    Up to 200,000 Scanned Images

  • Monitor

    21.5″Color LED Screen (1920*1080P)

  • Operating Environment

  • System Power

    220 VAC +/- 10% 50/60Hz
    110 VAC +/- 10% 50/60Hz

  • Power Consumption

    < 300W

  • Noise Level

    < 58dB(A)

  • Operating Temperature

    -10°C to +45°C

  • Storage Temperature

    -20°C to +60°C

  • Working Humidity

    5-95%, Non-condensing

  • Health & Safety

  • Radiation Leak Dosage

    < 0.5μSv/h (10cm From the Surface)
    Compliant with Radiation Safety Standards (< 5μSv/h ) for Cabinet X-ray Systems
