ZKX6040 P3D

ZKX6040 P3D

0,00 EGP

10 متوفر في المخزون

SKU: ZKX6040 P3D

تحميل ورقة البيانات (Download Datasheet PDF)

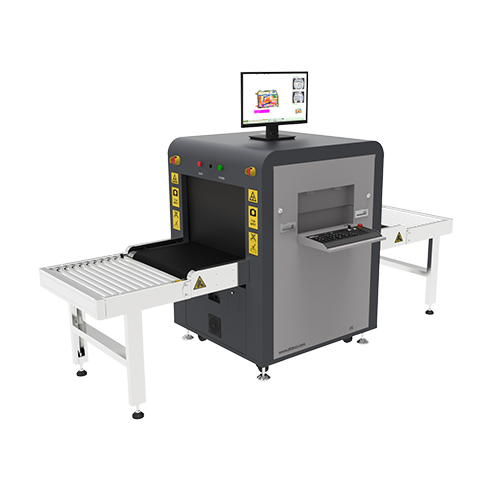

ZKTeco's ZKX6040 P3D X-ray inspection system uses the 3D perspective technology and computer vision  analytics to improve the baggage screening efficiency.

Designed for optimal security screening, the ZKX6040 P3D features a 600mm (W) x 400mm (H) tunnel  opening and an integrated dual-camera system that tracks passengers and baggage.This X-ray inspection system streamlines the inspection of carry-on bags, parcels, and personal items in important checkpoints like customs and stadiums.

ZKX6040 P3D x-ray inspection system works with the ZKBio SIS security management platform and is powered by computer vision analytics, the system achieves over 90% threat detection accuracy. The  comprehensive image processing tools and built-in operator training modules help operators to identify  threats and maintain inspection performance.

المواصفات الفنية (Parameters)

Parameters

  • General Specifications

  • Conveyor Speed

    0.2m / sec

  • Tunnel Dimensions (W*H)

    608*405 (mm)

  • Conveyor Load

    180 kg (evenly distributed)

  • Conveyor Height

    680 mm

  • Dual-energy Detector

    Yes

  • Single-view

    Yes

  • Radiation Leak Dosage

    0.3μ Gy/h (5cm from the surface)

  • Supported Software

    ZKBio SIS

  • Communication Iinterface

    RJ45 (TCP/IP)

  • Dimension (L*W*H)

    1701 * 910 * 1305 (mm)

  • Package Dimensions (L*W*H)

    2200 * 1200 * 1450 (mm)

  • Package Weight

    480 kg

  • Weight

    380 kg

  • Certifications

    CE

  • Operating Environment

  • Operating Temperature

    -10℃ to +45℃

  • Storage Temperature

    -20℃ to +60℃

  • Humidity

    5 to 95% non-condensing

  • Power Supply

    220 VAC +/- 10% 50-60Hz
    110 VAC +/- 10% 50-60Hz

  • Power Consumption

    700W

  • Noise

    ≤55dB

  • X-ray Generator and Image Performance

  • Number of Colors in X-ray Image

    4

  • Anode Voltage

    80-160 kV (adjustable)

  • Tube Current

    0.3-1.0mA (adjustable)

  • Orientation

    Vertically upward

  • Generator Cooling

    Sealed oil bath with forced air / 100%

  • Steel Penetration

    36 mm

  • Wire Resolution

    34 AWG

  • Space Definition

    Horizontal Φ1.0mm / Vertical Φ2.0mm

  • Penetrate Definition

    32 AWG

  • X-ray Film Safety

    ASA / ISO 1600 standard of film safety

  • X-ray converter type

    L-shaped dector line

  • Computer Specification

  • Operating System

    Windows 10

  • Processor

    Intel quad-core i5-4570 3.6GHz

  • Monitor

    21.5” Color LED Screen (1920*1080P)

  • RAM

    8GB DDR4

  • Hard Drive

    2TB HDD

  • Additional Functions

    Real-time passenger-baggage correlation, Automated image and video capture, Biometric data linkage, Quick retrieval of inspection records,
    US8 3.0 -1 Ports
    USB 2.0 *2 Ports
    Stored image / Video capaclty (e.g, lMS lmage Storage System -stores up to 100,000 images)
