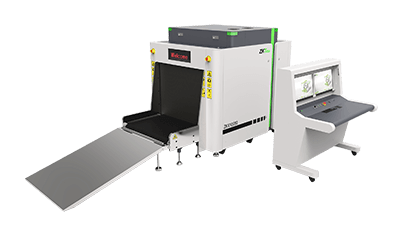

ZKX10080 X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan the objects up to a size of 100 × 80cm.
ZKX10080 uses reliable high quality dual energy X-ray generator. With the superb image algorithm, ZKX10080 could offer clear scanning image, which allows operators to identify potential threat items visually. Also, ZKX10080 equipped with a lowered conveyor height to make it easier to put the luggage on.
ZKX10080 has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password. The conveyor could be folded to reduce the package volume so that could save the transportation cost. With modern designed side door, the maintenance would be much easier.
المواصفات الفنية (Parameters)
Parameters
-
Specifications
-
Tunnel Size
1000*800 (mm) (W*H)
-
Speed
0.2-0.4m/s (adjustable)
-
Height of Transmission Belt
385 mm
-
Maximum Load
200 kg (Adequate distribution)
-
Wire Resolution
36 AWG
-
Space Definition
Horizontal Φ1.0mm Vertical Φ2.0mm
-
Penetrate Definition
32 AWG
-
Penetration
32mm steel board
-
Monitor
21.5 inch LED X 2
-
System Function
High density alert, Explosive/ Drug auxiliary detect, TIP, Luggage counter, date/time display, User management, Training.
-
Film Safety
ASA / ISO1600 standard of film safety
-
Supported Software
ZKBio SIS
-
Communication Interface
RJ45 (TCP/IP)
-
X-ray System
-
Tube Voltage
80-160kV (adjustable)
-
Cooling
Seal oil cooling / 100%
-
Tube Current
0.3-1.0 mA(adjustable)
-
Radiation Leak Dosage
0.2 μ Gy/h (5cm from the surface)
-
Installation Specification
-
Size (L*W*H)
2984*1405*1666 (mm)
-
Package Size (L*W*H)
2200*1500*1750 (mm)
-
Console Desk Size (L*W*H)
1320*900*1320 (mm)
-
Package Weight
1050KG+135KG (Console desk)
-
Power Consumption
1 kVA
-
Noise
53.8 dB(A)
