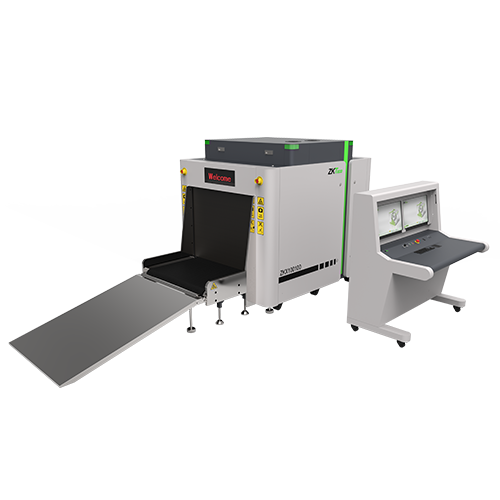

ZKX100100 X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan the objects up to a size of 100 × 100cm. ZKX100100 uses reliable high quality dual energy X-ray generator. With the superb image algorithm, ZKX100100 could o er clear scanning image, which allows operators to identify potential threat items visually. Also, ZKX100100 equipped with a lowered conveyor height to make it easier to put the luggage on. ZKX100100 has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password. With ergonomic modern design, ZKX100100 could help operators to identify suspicious items fast and accurately.
المواصفات الفنية (Parameters)
Parameters
-
Specifications
-
Tunnel Size
1000*1000(mm)
-
Speed
0.2-0.4m/s (adjustable)
-
Height of Transmission Belt
387 mm
-
Maximum Load
200 kg (Adequate distribution)
-
Wire Resolution
38 AWG
-
Space Definition
Horizontal Φ1.0mm Vertical Φ2.0mm
-
Penetrate Definition
32 AWG
-
Penetration
30mm steel board
-
Monitor
21.5 inch LED * 2
-
System Function
High density alert, Explosive / Drug auxiliary detect, TIP, Luggage counter, date / time display, User management, Training.
-
Film Safety
ASA / ISO1600 standard of film safety
-
X-ray System
-
Tube Voltage
80-160kV (adjustable)
-
Cooling
Seal oil cooling / 100%
-
Tube Current
0.3-1.0 mA(adjustable)
-
Radiation Leak Dosage
0.2 μ Gy/h (5cm from the surface)
-
Installation Specification
-
Dimension (L*W*H)
3384*1407*1866(mm)
-
Package Dimensions (L*W*H)
2600*1520*1920(mm)
-
Console Desk Size (L*W*H)
1320*900*320(mm)
-
Package Weight
Tunnel:1250kg; Console Desk:135kg
-
Power Consumption
1 kVA
-
Noise
55.8 dB(A)
