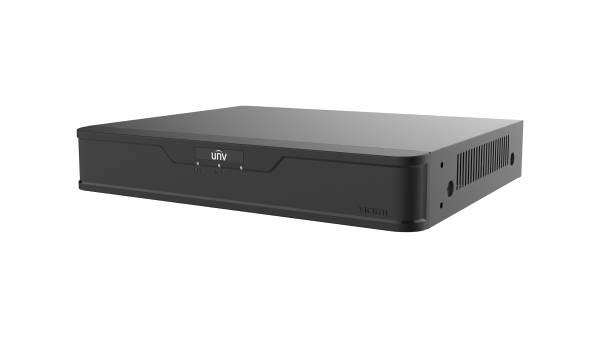

XVR301-04Q4

XVR301-04Q4

0,00 EGP

10 متوفر في المخزون

SKU: XVR301-04Q4

• Support H.265/H.264 video formats
• Support audio over coaxial cable(only for TVI cameras)
• Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
• 4/8/16-channel BNC input
• Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
• HDMI and VGA simultaneous output
• Long transmission distance over coaxial cable
• Supports two-way audio when paired with specific front-end analog cameras.（UAC-B142-ACF28LM-DL, UAC-B142-ACF40LM-DL, UAC-T142-ACF28LM-DL, UAC-T142-ACF40LM-DL）

المواصفات الفنية (Specifications)

 XVR301-04Q4XVR301-08Q4XVR301-16Q4
Video/Audio Input
IP Video Input2-ch4-ch8-ch
Analog Video Input4-ch, BNC8-ch, BNC16-ch, BNC
Max IP Video Input6-ch12-ch24-ch
Supported Analog Camera TypesSupport AHD input:
8MP@15fps
5MP@20fps
5MP@12fps
4MP@30fps
4MP@25fps
4MP@15fps
1080P@30fps
1080P@25fps
720P@30fps
720P@25fps
Support TVI input:
8MP@15fps
8MP@12fps
3K@20fps
5MP@20fps
5MP@12fps
4MP@30fps
4MP@25fps
4MP@15fps
1080P@30fps
1080P@25fps
720P@30fps
720P@25fps
Support CVI input:
8MP@15fps
8MP@12fps
5MP@25fps
5MP@20fps
4MP@30fps
4MP@25fps
1080P@30fps
1080P@25fps
720P@30fps
720P@25fps
Support CVBS input
BNC Audio Input4-ch, channel audio8-ch, channel audio16-ch, channel audio
RCA Audio Input1-ch
3.5mm Audio InputN/A
Video/Audio Output
Video OutputSupport 1-ch CVBS output, 1-ch HDMI, 1-ch VGA, VGA and HDMI simultaneous output
HDMI OutputHDMI: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA OutputVGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
HDMI StandardHDMI 1.4
BNC Video Output1-ch
BNC Audio Output4-ch, channel audio8-ch, channel audio16-ch, channel audio
RCA Audio Output1-ch
3.5mm Audio OutputN/A
Live View DisplayHDMI/VGA: 1/4/6/8/9HDMI/VGA: 1/4/6/8/9/16HDMI/VGA: 1/4/6/8/9/16/25
Default Num of Live ScreenVGA: 4; HDMI: 4VGA: 8; HDMI: 8VGA: 16; HDMI: 16
Playback Screen1/4/91/4/9/161/4/9/16
Encoding/Decoding
Recording Resolution8MP Lite/3K Lite@12/5MP Lite/4MP Lite/1080P/720P/D1
Recording Frame RateMain stream: 8MP Lite@8fps Sub stream: D1@8fps
Third Stream: CIF@8fps
Main stream: 3K Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 5MP Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 4MP Lite@15fps Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 1080P@15fps Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 720P@30fps
Sub stream: D1@30fps
Third Stream: CIF@30fps		Main stream: 8MP Lite@8fps Sub stream: D1@8fps
Third Stream: CIF@8fps
Main stream: 3K Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 5MP@6fps
Sub stream: D1@6fps
Third Stream: CIF@6fps
Main stream: 5MP Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 4MP@15fps
Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 1080P@15fps Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 720P@30fps
Sub stream: D1@30fps
Third Stream: CIF@30fps		Main stream: 8MP Lite@8fps Sub stream: D1@8fps
Third Stream: CIF@8fps
Main stream: 3K Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 5MP@6fps
Sub stream: D1@6fps
Third Stream: CIF@6fps
Main stream: 5MP Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 4MP@15fps
Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 1080P@15fps Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 720P@30fps
Sub stream: D1@30fps
Third Stream: CIF@30fps
Audio Sample Rate8 kHz, 16 bit per channel
Audio Bit Rate64 Kbps per channel
Decoding CapabilityAnalog: 4 x 8MP Lite@8, 4 x 3K Lite@12, 4 x 5MP Lite@12, 4x 4MP Lite@15, 4 x 1080P@15, 4 x 720P@30
IP: 1 x 4k@15,1 x 6MP@20,1 x 5MP@20,1 x 4MP@30, 1 x 3MP@30, 2 x 1080P@30, 4 x 720P@30
Analog: 8 x 8MP Lite@8, 8 x 3K Lite@12, 8 x 5MP@6, 8 x 5MP Lite@12, 8 x 4MP@15, 8 x 1080P@15, 8 x 720P@30
IP: 1 x 8MP@30, 1 x 6MP@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080P@30, 8 x 720P@30		Analog: 16 x 8MP Lite@8, 16 x 3K Lite@12, 16 x 5MP@6,16 x 5MP Lite@12, 16 x 4MP@15,16 x 1080P@15,16 x 720P@30
IP: 2 x 8MP@30, 2 x 6MP@30, 2 x 5MP@30, 4 x 4MP@30, 4 x 3MP@30, 8 x 1080P@30, 16 x 720P@30
Num of Concurrent Playback8-ch16-ch32-ch
Num of Concurrent Playback in Local4-ch8-ch16-ch
Coaxial Cable
Analog camera Upgrade over Coaxial CableSupport
Audio over Coaxial Cable(Form)4-ch, One-way Audio(TVI UNV )/One-way Audio(CVI UNV)8-ch, One-way Audio(TVI UNV )/One-way Audio(CVI UNV)16-ch, One-way Audio(TVI UNV )/One-way Audio(CVI UNV)
Two-way Audio
Two-way Audio1-ch (with IP Camera or specific Analog Camera )
Analog Snapshot
FTP/Schedule/Event SnapshotSchedule/FTP/Event snapshot:6-ch snapshot, up to 3840*2160 resolutionSchedule/FTP/Event snapshot:12-ch snapshot, up to 3840*2160 resolutionSchedule/FTP/Event snapshot:24-ch snapshot, up to 3840*2160 resolution
Network
Incoming Bandwidth40Mbps (Up to 48Mbps after all analog channel conversion)40Mbps (Up to 56Mbps after all analog channel conversion)80Mbps (Up to 112Mbps after all analog channel conversion)
Outgoing Bandwidth48Mbps64Mbps160Mbps
Max users can be added32
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, HTTP, DNS, DDNS, SMTP, HTTPSTCP/IP, P2P, UPnP, NTP, DHCP, HTTP, DNS, DDNS, SMTP, HTTPSTCP/IP, P2P, UPnP, DHCP, NTP, HTTP, DNS, DDNS, SMTP, HTTPS
Browser(Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Browser(Plugin-Free)Chrome 57+, Edge 16+, Firefox 58+, Safari 11+
Smart
Analog Smart by XVRUltra Motion Detection (UMD) , Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area)
IP Smart by IPCFace Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, People Flow CountingFace Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, People Flow CountingFace Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, People Flow Counting
VCA SearchFace Search, Behavior Search, People Counting Report
Smart Functions by XVR1-ch (Face Detection), 2-ch (SIP), 4-ch (UMD)1-ch (Face Detection), 4-ch (SIP), 8-ch (UMD)2-ch (Face Detection), 4-ch (SIP), 16-ch (UMD)
Alarm
General AlarmMotion
Alert AlarmIP Conflict, Network Disconnected, Disk offline, Illegal Access, Disk Abnormal, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot AbnormalIP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot AbnormalIP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA1 SATA interface
CapacityUp to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk GroupSupport
External Interface
Network Interface1 RJ45 10 M/100 M self-adaptive Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
Network Working ModeSingle port, not involved
USBRear panel: 2 × USB2.0Rear panel: 2 × USB2.0Rear panel: 1 × USB2.0, 1 × USB3.0
RS4851
RS232N/A
Alarm In4-ch
Alarm Out1-ch
Power SupplyDC 12 V/2 ADC 12 V/2 ADC 12 V/3 A
Power SwitchN/A
Redundant Power SupplyN/A
BuzzerSupport
Working Environment
Working Temperature-10 ℃ to 55 ℃ (14 ℉ to 131 ℉ )
Working Humidity≤ 90% RH (non-condensing)
Power Consumption (without HDD)≤ 7W≤ 8W≤ 12W
Heat RadiationN/ARadiatorFan
Dimensions
Weight (without HDD)≤0.9Kg（1.98lb）
Height1U
Dimensions260mm × 226mm × 46.6mm
(10.2" x 8.9" x 1.8")		260mm × 226mm × 46.6mm
(10.2" x 8.9" x 1.8")		260mm × 251mm × 45.8mm
(10.2" x 9.9" x 1.8")
Certification
CertificationCE, FCC, UL, RoHS, WEEE
CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCCPart15 Subpart B
Compliance
NDAA CompliantSupport
Feature supported
Cruise lines num of each camera4
Preset num32
N+1 Hot SpareN/A
Fisheye Dewarping by IPCN/A
Fisheye Dewarping by NVR (Local)N/A
ANRSupport
Downlink ONVIFSupport (Profile S)
Uplink ONVIFN/A
UCS(Web socket)N/A
NASSupport
Ucode Basic Mode(Analog)Support
Ucode Basic Mode(IPC)Support
Ucode Advanced Mode(Analog)Support
Ucode Advanced Mode(IPC)Support
POSN/A
Control the Dual-light of UNV Analog Cameras under TVISupport
Output ModeSupport
