VEX-B25L

VEX-B25L

0,00 EGP

10 متوفر في المخزون

SKU: VEX-B25L

تحميل ورقة البيانات (Download Datasheet PDF)

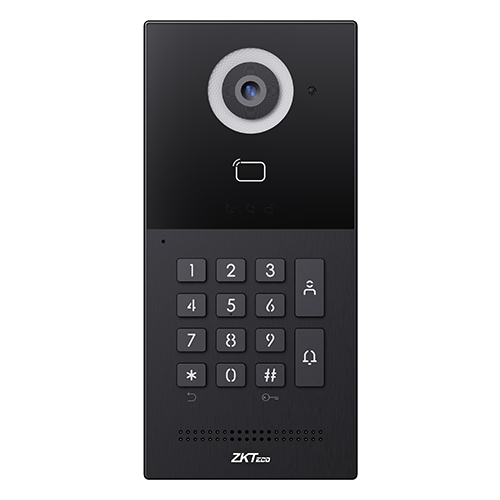

ZKTeco’s VEX-B25L is a smart outdoor video station that seamlessly integrates video intercom capabilities with RFID card reading and PIN code password verification, offering a comprehensive access control solution.

The VEX-B25L is equipped with Linux operating system and it features a 2MP CMOS camera. It is equipped  with an H.264 codec for efficient, high-quality video transmission and storage.  Also, the VEX-B25L is equipped with power supply options via PoE (IEEE 802.3af) or DC power supply. It enables two-way communication with visitors via indoor monitors, facilitating identity verification before granting access.

This outdoor station is also equipped with 2 relay outputs, allowing it to connect and control two door locks.  While the RS-485 and Wiegand port provide versatile connectivity to access control devices.

المواصفات الفنية (Parameters)

Parameters

  • Physical

  • System

    Linux

  • RAM

    64 MB

  • ROM

    128 MB

  • Front Panel

    Aluminum+Tempered Glass

  • Keypad

    Physical keypad (14 keys)

  • Power Supply

    PoE (IEEE802.3af ) or DC 12V / 2A

  • Standby Power

    1.5 W

  • Rated Power

    3.5 W

  • Camera

    2MP, CMOS

  • Indicator Light

    3

  • Wiegand Port

    1

  • Ethernet Ports

    1 x RJ45, 10 / 100 Mbps self-adaptive Ethernet interface

  • Door Entry

    IC card (13.56MHz) & ID card (125kHz) (User Capacity: 20,000 Card Capacity: 60,000), PIN code

  • Card Reading Distance

    ≤ 3cm

  • Reset Button

    1

  • RS485 Port

    1

  • Relay Out

    2

  • Input

    2

  • Ingress Protection Rating

    IP65(water proof and dust resistant)
    IK06(vandal proof )

  • Installation Method

    Wall mount (on flat surface)

  • Dimensions (H*W*D)

    188 x 88 x 34 mm

  • Operating Temperature

    -40°C to +55°C

  • Storage Temperature

    -40°C to +70°C

  • Operating Humidity

    10% to 90% RH (non-condensing)

  • Audio

  • Audio Codec

    H.264

  • Video Resolution

    1280 x 720

  • Viewing Angle

    110°(H) / 60°(V) / 125°(D)

  • Max. Image Transfer Rate

    720p – 25fps

  • Supplement Light

    LED (white)

  • Networking

  • Protocol

    Protocol: ONVIF, SIP 2.0, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
