VEX-B24L

VEX-B24L

0,00 EGP

10 متوفر في المخزون

SKU: VEX-B24L

تحميل ورقة البيانات (Download Datasheet PDF)

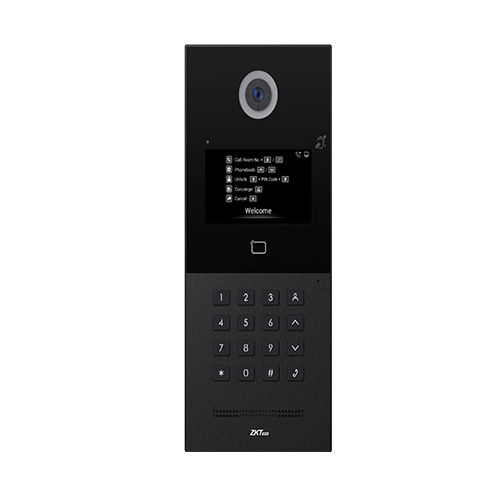

ZKTeco’s VEX-B24L is a smart outdoor video station that seamlessly integrates video intercom capabilities with IC card reading and PIN code verification, offering a comprehensive access control solution.

The VEX-B24L is equipped with Linux operating system and it features a 2MP CMOS camera with a  4.3 inches LCD monitor. It is equipped with an H.264 codec for efficient, high-quality video transmission and storage.  Also, the VEX-B24L provides an induction loop for hearing aid compatibility and Braille dots on the interface  for visually impaired or partially impaired users, guaranteeing an accessible and independent experience.

Besides, VEX-B24L enables two-way communication with visitors via indoor monitors, facilitating identity  verification before granting access. This outdoor station is also equipped with 3 relay outputs, allowing it to connect and control door locks. The RS-485 and Wiegand port provide versatile connectivity to access control devices.

المواصفات الفنية (Parameters)

Parameters

  • Physical

  • System

    Linux

  • Front Panel

    Aluminum+Tempered Glass

  • Keypad

    Physical keypad (16 keys)

  • Power Supply

    PoE (IEEE802.3af ) or DC 12V / 2A

  • Standby Power

    1.5 W

  • Rated Power

    9 W

  • Camera

    2MP, CMOS

  • IR Sensor

    Support

  • Wiegand Port

    1

  • Ethernet Ports

    1 x RJ45, 10 / 100 Mbps self-adaptive Ethernet interface

  • Door Unlock Method

    IC card (13.56MHz) & ID card (125kHz) (user capacity: 20,000 ; card capacity: 60,000), PIN code password, Reset Button: 1

  • Card Reading Distance

    ≤ 3cm

  • RS485 Port

    1

  • Relay Out

    3

  • Input

    4

  • Ingress Protection Rating

    IP65 (water proof and dust resistant)
    IK06 (vandal proof )

  • Installation Method

    Flush mount (on flat surface)

  • Dimensions (H*W*D)

    295 x 133 x 43 mm

  • Operating Temperature

    -40°C to +55°C

  • Storage Temperature

    -40°C to +70°C

  • Operating Humidity

    10% to 90% RH (non-condensing)

  • Display

  • Display

    4.3-inch TFT LCD

  • Resolution

    480 x 272

  • Audio

  • Audio Codec

    G.711

  • Echo Cancellation

  • DTMF

    RFC2833

  • Microphone

    Built-in microphone

  • Speaker

    8Ω / 1W

  • Video

  • Video Codec

    H.264

  • Video Resolution

    1280 x 720

  • Viewing Angle

    115°(H) / 75°(V) / 125°(D)

  • Max. Image Transfer Rate

    720p – 25fps

  • Supplement Light

    LED (white)

  • Networking

  • Protocol

    SIP 2.0, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
