VEX-B24A

VEX-B24A

0,00 EGP

10 متوفر في المخزون

SKU: VEX-B24A

تحميل ورقة البيانات (Download Datasheet PDF)

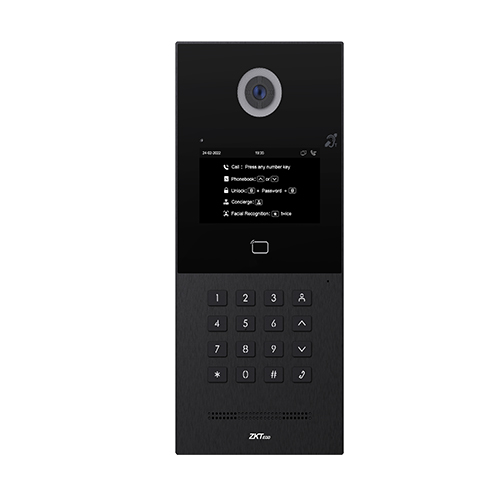

ZKTeco’s VEX-B24A is a smart outdoor video station with Android 6.0 operating system that seamlessly integrates video intercom capabilities with facial recognition, offering a comprehensive access control solution.

The VEX-B24A supports multiple verification methods, including facial recognition, IC card reader, mobile NFC, and PIN code password. This intelligent outdoor station features a 2MP CMOS camera with a 100° wide viewing angle and a white LED supplement light, ensuring clear visuals in all lighting conditions. It is equipped with an H.264 codec for efficient, high-quality video transmission and storage.

Furthermore, the VEX-B24A enables two-way communication with visitors via indoor monitors, facilitating identity verification before granting access. This outdoor station is also equipped with a relay and RS-485 port, allowing it to connect and control door lock, providing versatile connectivity to access control devices.

المواصفات الفنية (Parameters)

Parameters

  • Physical

  • System

    Android 6.0

  • RAM

    1 GB

  • ROM

    8 GB

  • Front Panel

    Aluminum+Tempered Glass

  • Keypad

    Physical key (16 keys)

  • Power Supply

    PoE+ (IEEE 802.3at) or DC 12V / 2A

  • Standby Power

    8 W

  • Rated Power

    16 W

  • Camera

    2MP, CMOS, WDR

  • IR Sensor

    Support

  • Wiegand Port

    1

  • Ethernet Ports

    1 x RJ45, 10/100 Mbps self-adaptive

  • Door Unlock Method

    Facial Recognition, IC (13.56MHz) & ID (125kHz) card, PIN code

  • Reset Button

    1

  • RS485 Port

    1

  • Relay Out

    3

  • Input

    4

  • Ingress Protection Rating

    IP65 (water and dust proof )
    IK06 (vandal resistant)

  • Installation Method

    Flush mount (on flat surface)

  • Dimensions (H*W*D)

    295 x 133 x 43 mm

  • Face Template Capacity

    20,000

  • Card Capacity

    60,000

  • User Capacity

    20,000

  • Operating Temperature

    -40°C to +55°C

  • Storage Temperature

    -40°C to +70°C

  • Operating Humidity

    10% to 90% (non-condensing)

  • Display

  • Display

    4.3-inch TFT LCD

  • Resolution

    480 x 272

  • Audio

  • Audio Codec

    G.711

  • Echo Cancellation

  • DTMF

    RFC2833

  • Microphone

    Built-in microphone

  • Speaker

    8Ω / 1W

  • Video

  • Video Codec

    H.264

  • Video Resolution

    up to 1920 x 1080

  • Viewing Angle

    120°(H) / 80°(V) / 130°(D)

  • Max. Image Transfer Rate

    1080p – 25fps

  • Supplement Light

    LED (White)

  • Networking

  • Protocol

    SIP Ver 2.0 , UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
