VEX-B21L

VEX-B21L

0,00 EGP

10 متوفر في المخزون

SKU: VEX-B21L

تحميل ورقة البيانات (Download Datasheet PDF)

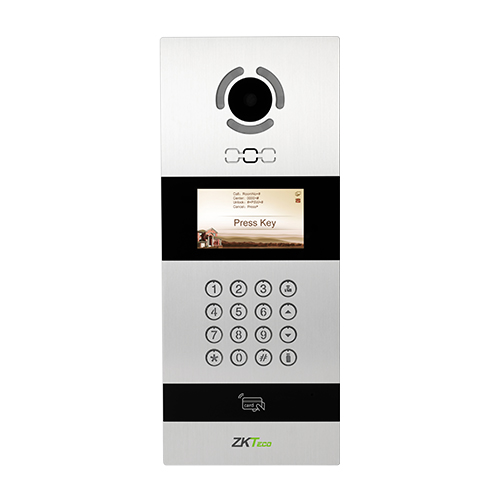

ZKTeco’s VEX-B21L is a smart outdoor video station that seamlessly integrates video intercom capabilities with IC card and NFC, offering a comprehensive access control solution.

The VEX-B21L is equipped with Linux operating system and it supports IC card reading, mobile NFC, and PIN  code password for verification. This smart outdoor station features a 2MP CMOS camera with a 100° wide viewing angle and a white LED supplement light, ensuring clear visuals in all lighting conditions. It is equipped with an H.264 codec for efficient, high-quality video transmission and storage. Furthermore, the VEX-B21L enables two-way communication with visitors via indoor monitors, facilitating identity verification before granting access.

This outdoor station is also equipped with a Wiegand, relay and RS-485 port,  allowing it to connect and control door locks, providing versatile connectivity to access control devices.

المواصفات الفنية (Parameters)

Parameters

  • Physical

  • System

    Linux

  • RAM

    64 MB

  • ROM

    128 MB

  • Front Panel

    Aluminum

  • Keypad

    Physical key (16 keys)

  • Power Supply

    PoE (IEEE802.3af ) or DC 12V / 2A

  • Standby Power

    1.5 W

  • Rated Power

    9 W

  • Camera

    2MP, CMOS

  • Ethernet Ports

    1 x RJ45, 10/100 Mbps self-adaptive

  • Door Entry

    IC card (13.56MHz ) (Card Capacity: 60,000), PIN code, NFC

  • RS485 Port

    1

  • Relay Out

    1

  • Exit Button

    1

  • Door Magnetic

    1

  • Wiegand Port

    1

  • Installation Method

    Flush mount (on flat surface)

  • Application Environment

    Outdoor

  • Dimensions (H*W*D)

    380 * 158 * 55.7 ( mm)

  • Operating Temperature

    -40°C to +55°C

  • Storage Temperature

    -40°C to +70°C

  • Operating Humidity

    10% to 90% (non-condensing)

  • Certification

    IP65 (waterproof and dust resistance)

  • IC Card Reading Distance

    ≤ 3cm

  • Display

  • Display

    4.3” TFT LCD

  • Resolution

    480 x 272

  • Audio

  • Audio Codec

    G.711

  • Echo Cancellation

    Yes

  • DTMF

    RFC2833

  • Microphone

    Built-in microphone

  • Speaker

    Built-in speaker

  • Video

  • Video Codec

    H.264

  • Video Resolution

    1280 x 720

  • Viewing Angle

    00°(D)

  • Max. Image Transfer Rate

    720p – 30fps

  • Supplement Light

    LED (white)

  • Networking

  • Protocol

    ONVIF, SIP 2.0, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP

  • Package features

  • Package Content

    – VEX-B21L (Power adapter not included)
    – Flush Mounting Box
    – Screwing kit
    – User Manual
