VE05-B21L

VE05-B21L

0,00 EGP

10 متوفر في المخزون

SKU: VE05-B21L

تحميل ورقة البيانات (Download Datasheet PDF)

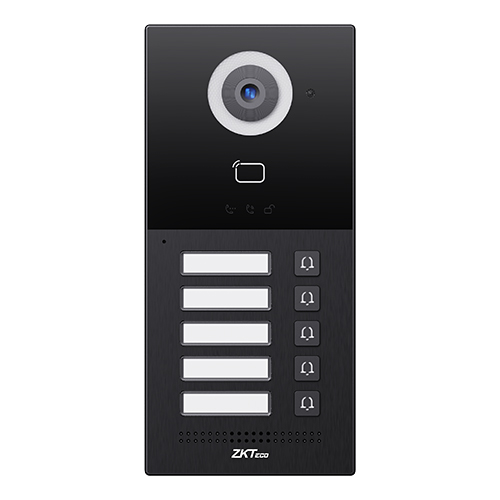

ZKTeco’s VE05-B21L is a smart multi-tenant video outdoor station designed for multiple units in an apartment. This outdoor station features five call buttons, integrating video intercom capabilities with entrance unlocking to provide a comprehensive access control solution.

VE05-B21L supports IC card and ID card reading for door unlocking with a large user and card capacity. VE05- B21L has a CMOS FHD camera with digital WDR as well as a white LED supplement light, for clear visuals in any lighting conditions. Powered by an H.264 codec, it ensures efficient, high-quality video transmission and storage.

The VE05-B21L enables two-way communication with visitors via indoor monitors, facilitating identity verification prior to granting access. Its built-in tamper alarm promptly notifies you of any attempted tampering. VE05-B21L also features two relays which can connect and control two door locks.

And it is equipped with a Wiegand and an RS485 port which provide versatile connectivity with access control devices.  It reached an IP65 (water proof and dust resistant) and IK06 (vandal resistant) protection rating, ensuring its reliable operation in all weather conditions.

المواصفات الفنية (Parameters)

Parameters

  • Physical

  • System

    Linux

  • RAM

    64 MB

  • ROM

    128 MB

  • Front Panel

    Aluminum+Tempered Glass

  • Button

    5 call buttons

  • Power Supply

    PoE PoE (IEEE 802.3af ) or DC 12V / 2A

  • Standby Power

    1.5 W

  • Rated Power

    3.5 W

  • Camera

    2MP, CMOS

  • Indicator Light

    3

  • Wiegand Port

    1

  • Ethernet Ports

    x RJ45, 10/100 Mbps self-adaptive

  • Door Entry

    IC card (13.56MHz) & ID card (125kHz) (Capacity: 20,000 users ; 60,000 cards)

  • Card Reading Distance

    ≤ 3cm

  • Reset Button

    1

  • RS485 Port

    1

  • Relay Out

    2

  • Input

    2

  • Ingress Protection Rating

    IP65 (water proof and dust proof )
    IK06 (vandal resistant)

  • Installation Method

    Wall Mount (on flat surface)

  • Dimensions (H*W*D)

    188 x 88 x 34 mm

  • Operating Temperature

    -40°C to +55°C

  • Storage Temperature

    -40°C to +70°C

  • Operating Humidity

    10% to 90% (non-condensing)

  • Audio

  • Audio Codec

    G.711

  • Echo Cancellation

  • DTMF

    RFC2833

  • Microphone

    Built-in microphone

  • Speaker

    Built-in speaker

  • Video

  • Video Codec

    H.264

  • Video Resolution

    1280 x 720

  • Viewing Angle

    110°(H) / 60°(V) / 125°(D)

  • Max. Image Transfer Rate

    720p – 25fps

  • Supplement Light

    LED (White)

  • Networking

  • Protocol

    SIP Version 2.0, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
