VE01-B25L

VE01-B25L

0,00 EGP

10 متوفر في المخزون

SKU: VE01-B25L

تحميل ورقة البيانات (Download Datasheet PDF)

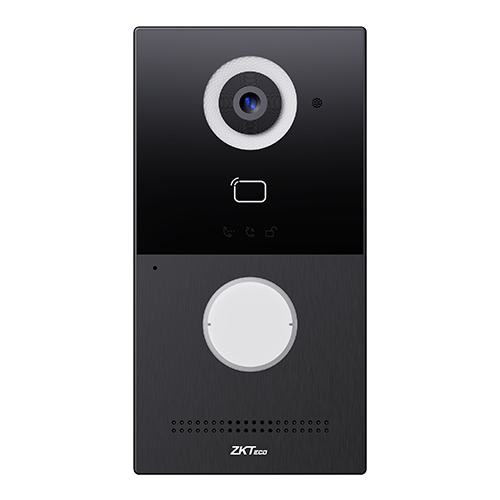

ZKTeco’s VE01-B25L is a smart outdoor video station that combines a video intercom and remote door access control. It supports IC card and ID card reading for door unlocking with a large user and card capacity.

VE01-B25L has a CMOS FHD camera with digital WDR as well as a white LED supplement light, for clear visuals in any lighting  conditions. Powered by an H.264 codec, it ensures efficient, high-quality video transmission and storage. The VE01-B25L enables two-way communication with visitors via indoor monitors, facilitating identity verification prior to granting access. Its built-in tamper alarm promptly notifies you of any attempted tampering.

VE01-B25L also features two relays which can connect and control two door locks. And it is equipped with a Wiegand and  an RS485 port which provide versatile connectivity with access control devices.  It reached an IP65 (water proof and dust resistant) and IK06 (vandal resistant) protection rating, ensuring its reliable operation in all weather conditions.

المواصفات الفنية (Parameters)

Parameters

  • Physical

  • System

    Linux

  • RAM

    64 MB

  • ROM

    128 MB

  • Front Panel

    Aluminum+Tempered Glass

  • Power Supply

    PoE (IEEE802.3af ) or DC 12V / 2A

  • Standby Power

    1.5 W

  • Rated Power

    3.5 W

  • Camera

    2MP, CMOS

  • Indicator Light

    3

  • Wiegand Port

    1

  • Ethernet Ports

    1 x RJ45, 10 / 100 Mbps self-adaptive

  • Card Reading Distance

    ≤ 3cm

  • Door Entry

    IC (13.56MHz) & ID (125kHz) card (User capacity:20,000 ; Card capacity: 60,000)

  • Reset Button

    1

  • RS485 Port

    1

  • Relay Out

    2

  • Input

    2

  • Ingress Protection Rating

    IP65 (water proof and dust proof )
    IK06 (vandal resistant)

  • Installation Method

    Wall Mount (on flat surface)

  • Dimensions (H*W*D)

    168 x 88 x 34 mm

  • Operating Temperature

    -40°C to +55°C

  • Storage Temperature

    -40°C to +70°C

  • Operating Humidity

    10% to 90% (non-condensing)

  • Audio

  • Audio Codec

    G.711

  • Echo Cancellation

    Yes

  • DTMF

    RFC2833

  • Microphone

    Built-in microphone

  • Speaker

    Built-in speaker

  • Video

  • Video Codec

    H.264

  • Video Resolution

    1280 x 720

  • Viewing Angle

    110°(H) / 60°(V) / 125°(D)

  • Max. Image Transfer Rate

    720p – 25fps

  • Supplement Light

    LED (White)

  • Networking

  • Protocol

    ONVIF, SIP Version 2.0, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
