• 2MP high quality imaging
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP66 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Supports 0 to 345° pan range, 0 to 90° tilt range
• Supports digital defog

المواصفات الفنية (Specifications)

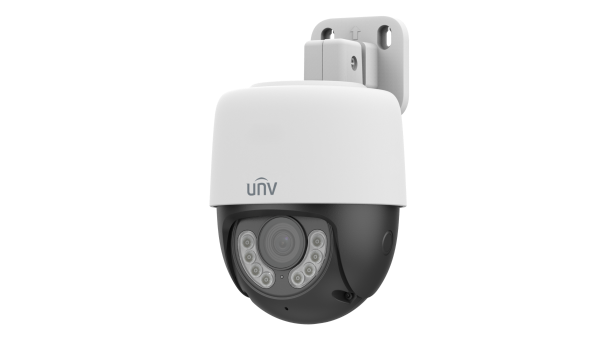

	UAC-P112-AF40-W
Camera
Max Resolution	2 MP
Sensor Size	1/2.9" CMOS
Min. Illumination	0.005 lux (F1.6, AGC ON) 0 lux (white light on)
Lens
Focus	4.0 mm
Lens Mount	M12
Angle of View (H)	83.8°
Angle of View (V)	42.7°
Angle of View (D)	100.1°
Illuminator
Illuminator Number	Eight white-light illuminators
Illumination Distance	30m
Lifetime	≥ 20000 hours
Video
Resolution	1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
Frame Rate	TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Shutter Time	PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Exposure Mode	Four modes: Global (default), BLC, HLC, DWDR
Day/Night	24/7 color images
Digital Noise Reduction	2D/3D
White Balance	Two modes: Auto (default), Manual
WDR	DWDR
Flip	Supports 180°horizontal flip, 180°vertical flip
Digital Defog	Support
PTZ
Pan Range	0° to 345°
Pan Speed	1° to 40°/s
Tilt Range	0° to 90°
Tilt Speed	1° to 30°/s
Number of Presets	32
Control Mode	485/BNC
Patrol	N/A
Baud Rate	9600 bps/4800 bps/2400 bps/1200 bps
Interface
Power Interface	5.5 mm Power Interface
Video Output	BNC, supports TVI/AHD/CVI/CVBS
RS485	Support
Operating Environment
Temperature	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity	≤ 95% RH (non-condensing)
Surge Protection	4 KV for power, 4 KV for video output interfaces, 6 kV for RS485 interface
Ingress Protection	IP66
General
Power	DC 12 V ± 25%
Power Consumption	MAX 8.5W
Mount	Wall Mount, Pendant Mount
Dimensions	Φ118mm*190mm (diameter*height)
Material	Graphene + Plastic
Weight	477g(1.05lb)
