• Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to various scenes
• Passive infrared thermal imaging, meets the requirement of concealed monitoring and is not affected by bad weather conditions such as fog, smoke, rain, snow, and night
• Thermal channel supports fire detection, and the optical channel can link to the fire position and zoom in for more accurate fire situation judgment
• Thermal & optical dual-spectrum smart intrusion prevention can be enabled simultaneously : cross line, enter area, leave area, intrusion, support smart tracking
• Optical channel supports 4 MP@60 fps, providing smoother motion images
• Optical channel supports gyroscope stabilization for stable pictures
• Optical channel supports heat wave reduction, which can reduce heat wave phenomena and improve image quality
• Vari-focal laser: 800 m (2624.7 ft) distance, proportional to optical zoom of camera module
• Rain-sensing auto wiper, providing clear images in harsh weather
• Supports 1/1 audio in/out, 7/2 alarm in/out, 1 serial port RS485
• Power supply: DC 48 V ± 25%, DC 24 V ± 15%, AC 24 V ± 25%
• IP66

المواصفات الفنية (Specifications)

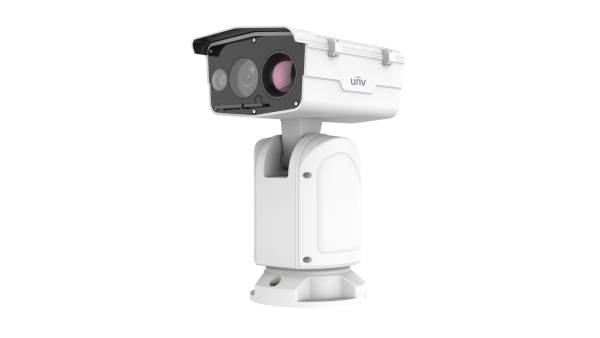

	TIC7626EL-GAF75-4X56-VH1
Channel	Optical	Thermal
Camera
Max Resolution	4 MP	2 MP
Original Resolution	N/A	640 × 512
Sensor	1/1.8″ CMOS	Vanadium oxide uncooled focal plane arrays
Min. Illumination	Colour : 0.0003lux(F1.2, AGC ON) B/W : 0.0001lux(F1.2, AGC ON) 0 Lux with Laser	N/A
Day/Night	IR-cut filter with auto switch (ICR)	N/A
Pixel Size	N/A	12 um
NETD	≤ 40 mk@F1.0@25 ℃
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	>52 dB
Lens
Focal Length	6 ~ 336 mm	75mm
Optical Zoom	56X	N/A
Iris	F1.2 to F4.6	F1.0
Field of View (H)	57.9°~ 1.6°	6.1°
Field of View (V)	34.6°~ 0.9°	4.8°
Field of View (D)	71.2°~ 1.9°	7.2°
DORI
DORI Distance (Detect)	155.5m(510.1ft)~4829.4m(15844.5ft)	N/A
DORI Distance (Observe)	62.2m(204.0ft)~1931.8m(6337.8ft)	N/A
DORI Distance (Recognize)	31.1m(102.0ft)~965.9m(3168.9ft)	N/A
DORI Distance (Identify)	15.5m(51.0ft)~482.9m(1584.4ft)	N/A
Illuminator
Illumination Distance (IR)	Up to 800m(2624.7ft)	N/A
Video
Video Resolution	Main Stream: 4MP (2688×1520): Max.60fps; Sub Stream: 2MP (1920×1080): Max.60fps; Third Stream: D1(720 x 576): Max.60fps;	1080P(1920*1080), Max.30fps
Video Compression	Ultra 265, H.265, H.264, MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	24 areas, up to 8 areas per scene	N/A
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2	N/A
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
Defog	Digital defog, Optical defog	N/A
Low Illumination Characteristics	ColorHunter with Wise-ISP
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle)
Smoke Detection	Support	N/A
Auto Tracking	Support tracking targets automatically, capturing detailed information at a distance
Detection distance for vehicles (4 × 1.4 meters)	N/A	1500m
Detection distance for personnel (1.8 × 0.5 meters)	N/A	750m
Events
Fire Detection	N/A	Support
Basic Detection	Motion detection, Tampering alarm, Audio detection	N/A
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Detection distance for fire (2 × 2 meters)	N/A	4500m
UMD (Ultra Motion Detection)	Support	N/A
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Sampling Rate	16KHZ
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Client	EZStation, UNV-Link, UNV-Link Pro
PTZ
Pan Range	360° (endless)
Pan Speed	0.02°/s ~ 140°/s
Tilt Range	-90° ~ 45°
Tilt Speed	0.02° ~ 50°/s
Number of Presets	1024
Preset Image Freeze	Support
Home Position	Support
Number of Presets (IPC)	1024
3D Positioning	Support
Number of Patrol	16
Interface
Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	7/2
Serial Port	1 × RS485
Network	1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP
Video Output	N/A	1 BNC (for debugging)
General
Power	DC 48V±25%、DC 24V±15%、AC 24V±25%
Power Consumption	Max 135W
Power Interface	Wires with cold-pressed terminal
Dimensions	366 x 283 x 509 mm (14.4″ x 11.1″ x 20.0″)(L x W x H)
Weight	17.98kg(39.64lb)
Working Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
RTC	Support
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Certification
Protection	IP66
Environment	CE-RoHS (2011/65/EU;(EU)2015/863);WEEE(2012/19/EU)
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC(FCC47CFRpart15B)
Live View
OSD Font	Vector
OSD Character Number	40
