• Thermal & Optical dual-spectrum image, dual video with single ip address, adaptable to more various scenes.
• The thermal imaging channel adopt instant image super-resolution.
• Original resolution is 400 × 300 .
• 1/2.7″ CMOS, high sensitivity sensor, satisfy the need of starlight image.
• Thermal module support reliable fire detection and fire shield area .
• Thermal module supports temperature detection and cold&hot spot tracking,supports abnormal temperature alarm.
• Thermal & Optical dual-spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion.
• Optical module supports smog recognition, which can help with fire alarm reconfirm.
• Support picture-in-picture mode, real-time contrast live, more convenient and clear .
• Support audio and light alarm, with red and blue warning lights built in.
• Ultra 265, H.265, H.264, MJPEG.
• Max 2688 × 1520@30fps in the optical module and max 1080P@30 fps in the thermal module.
• DC12 V±25% or PoE (IEEE802.3 at ) power supply.
• Alarm 3 in and 2 out, Audio 2 in and 1 out, micro sd, up to 512 GB.
• Anti-corrosion design for stable protection (NEMA 4X).

المواصفات الفنية (Specifications)

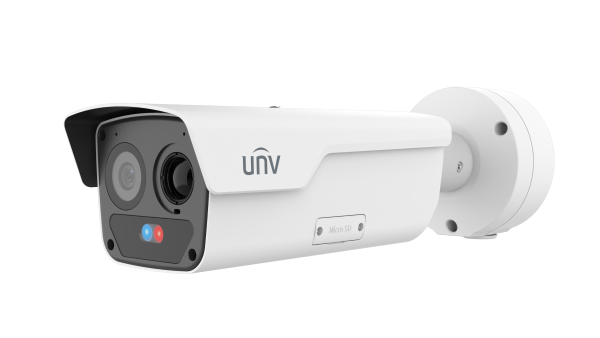

	TIC2624S-F25-4F12AC-I3
Channel	Optical	Thermal
Camera
Max Resolution	4 MP	1080P
Original Resolution	N/A	400 × 300
Sensor	1/2.7″ CMOS	Vanadium oxide uncooled focal plane arrays
Min. Illumination	Colour: 0.005 lux (F1.6, AGC ON) B/W: 0.003 lux(F1.6,AGC ON) 0 lux with IR	N/A
Day/Night	IR-cut filter with auto switch (ICR)	N/A
Pixel Size	N/A	12 um
NETD	< 30 mk@F1.0@25 ℃
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	>56 dB
Case Type	Bullet
Lens
Focal Length	12mm	25mm
Iris	F1.6	F1.0
Field of View (H)	24.5°	10.9°
Field of View (V)	13.9°	8.3°
Field of View (D)	30.1°	13.4°
DORI
DORI Distance (Detect)	270.0 m( 885.8 ft )	N/A
DORI Distance (Observe)	108.0 m( 354.4 ft )	N/A
DORI Distance (Recognize)	54.0 m( 177.2 ft )	N/A
DORI Distance (Identify)	27 m( 88.6 ft )	N/A
Illuminator
Wavelength	750 nm	N/A
Illumination Distance (IR)	100m	N/A
Light On/Off Control	Auto/Manual	N/A
Video
Frame Rate	4MP(2688*1520), Max 30fps	1080P(1920*1080), Max 30fps
Video Compression	Ultra 265, H.265, H.264, MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Five streams
OSD	Up to 10 OSDs
Privacy Mask	Up to 8 areas (8 blacks/ 8 mosaics)	N/A
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2	N/A
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support	N/A
BLC	Support	N/A
Defog	Digital defog	N/A
Palette	N/A	lava, medical, fusion, arctic, mazarine, rain, puce, white hot, iron oxide red, hot iron, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, red hot, green hot, color 1, color 2
Low Illumination Characteristics	LightHunter
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle)
Temperature Range		-20℃ ~150℃ (-4 ℉ to 302℉)
Detection distance for personnel (1.8 × 0.5 meters)	N/A	250m
Detection distance for vehicles (4 × 1.4 meters)	N/A	750m
Events
Fire Detection	N/A	Support
Basic Detection	Motion detection, Tampering alarm, Audio detection	N/A
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Detection distance for temperature (0.1 × 0.1 meters)	N/A	25m
Detection distance for fire (0.1 × 0.1 meters)	N/A	200m
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16KHZ
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR
Network
Protocols	IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile M),SDK, API
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Interface
Built-in Mic	Support
Built-in Speaker	Support
WIFI	N/A
Audio I/O	2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	3/2
Serial Port	1 × RS485
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A	1 BNC (for debugging)
Certification
EMC	CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130-4) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN IEC 62368-1) UL (UL 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power	DC12V (± 25% ), PoE (IEEE802.3 at )
Power Consumption	22.4W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	406.0 x 130.0 x 130.0 mm (16.0″ x 5.1″ x 5.1″)(L x W x H)
Weight	2.18 kg
Working Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
RTC	Support
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Live View
Maximum Bitstream	35
Maximum Bandwidth	50 Mbps
Plugin Free	Support
OSD Font	Vector
OSD Color	Support
OSD Character Number	40
Other
Corridor Mode	Support
