SenseFP M2 & SenseFace M2F-LR

SenseFP M2 & SenseFace M2F-LR

0,00 EGP

10 متوفر في المخزون

SKU: SenseFP M2 & SenseFace M2F-LR

تحميل ورقة البيانات (Download Datasheet PDF)

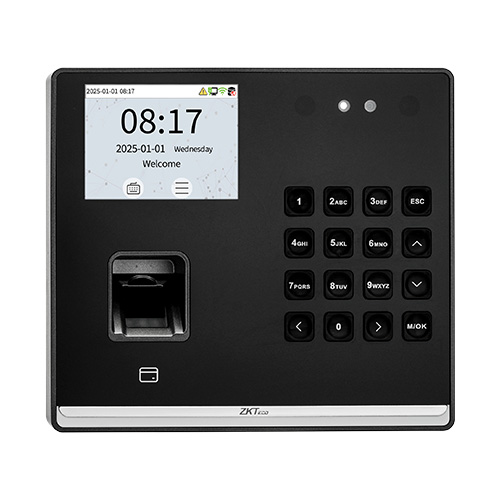

SenseFP M2 and SenseFace M2F-LR are time and attendance terminals which simplifies attendance solutions and support access control functions. It is aimed at small and medium-sized businesses (SMEs) that want to manage their workforce reliably and cost-effectively.

SenseFP M2 and SenseFace M2F-LR provide multiple authentication options, such as fingerprint verification and card entry. The SenseFace M2F-LR extends its capability with facial authentication with anti-spoofing function.

Also, the SenseFP M2 and SenseFace M2F-LR are equipped with TCP/IP and Wi-Fi interfaces for seamless network integration and secure communication. The terminal can transmit data quickly across wired and wireless environments. The SenseFP M2 and SenseFace M2F-LR have a 2,000mAh backup battery (optional). This provides a  minimum of 4 hours of continuous operational power.

المواصفات الفنية (Parameters)

Parameters

  • Model

    SenseFP M2
    SenseFace M2F-LR

  • Display

    2.8″@ TFT Color LCD Screen (320*240)

  • Camera

    SenseFP M2: N/A
    SenseFace M2F-LR: Binocular Camera @ 1MP

  • Operation System

    Linux

  • Hardware

    SenseFP M2: CPU: Dual Core@1GHz; RAM: 512MB; ROM: 8GB; Speaker: 8ohm @1W; Physical Keypad: 16 Keys; Fingerprint Sensor: ZK Optical Sensor; Casing color: Black and White
    SenseFace M2F-LR: CPU: Dual Core@1GHz; RAM: 512MB; ROM: 8GB; Speaker: 8ohm @1W; Supplement Light: Yes; Physical Keypad: 16 Keys; Fingerprint Sensor: ZK Optical Sensor; Casing Color: Black and White

  • Authentication method

    SenseFP M2: Fingerprint / Card / Password (Physical Keypad)
    SenseFace M2F-LR: Fingerprint / Face / Card / Password (Physical Keypad)

  • Fingerprint Capacity

    SenseFP M2: 3,000 (1:N) (Standard)
    SenseFace M2F-LR: 1,000 (1:N) (Standard)

  • Face Capacity

    SenseFP M2: N/A
    SenseFace M2F-LR: 500 (1:N) (Standard)

  • Card Capacity

    SenseFP M2: 3,000 (1:N) (Standard)
    SenseFace M2F-LR: 1,000 (1:N) (Standard)

  • User Capacity

    SenseFP M2: 3,000 (1:N) (Standard)
    SenseFace M2F-LR: 1,000 (1:N) (Standard)

  • Transaction Capacity

    150,000 (1:N)

  • Max. User Password Length

    8 Digits

  • Biometric Authentication Speed

    SenseFP M2: less than 1 sec (Fingerprint)
    SenseFace M2F-LR: less than 1 sec (Fingerprint); less than 1.2 sec (Facial Authentication)

  • Touchless Biometric Recognition Distance

    SenseFP M2: /
    SenseFace M2F-LR: 50cm to 180cm (Facial Authentication)

  • False Acceptance Rate (FAR) %

    SenseFP M2: FAR ≤ 0.0001% (Fingerprint )
    SenseFace M2F-LR: FAR ≤0.02% (Visible Light Facial Authentication) ; FAR ≤ 0.0001% ( Fingerprint )

  • False Rejection Rate (FRR) %

    SenseFP M2: FRR ≤ 0.1% (Fingerprint )
    SenseFace M2F-LR: FRR ≤ 0.05% (Visible Light Facial Authentication); FRR ≤ 0.1% (Fingerprint )

  • Biometric Algorithm

    SenseFP M2: ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
    SenseFace M2F-LR: ZKFace V4.0; ZKFingerprint V13.0 (Standard) / V10.0 (Optional)

  • Card Type

    ID Card@125 kHz (Standard)
    IC Card@13.56 MHz (Optional)

  • Communication

    TCP/IP*1
    Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
    USB: Type A (USB Drive Only )*1
    Electric Lock*1, Door Sensor*1, Exit Button*1

  • Standard Functions

    ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, HTTPs / SSH Backend Access, T9 Keyboard (Input)

  • Optional Functions

    IC Card, Wi-Fi, Backup Battery

  • Power Supply

    DC 12V 1.5A

  • Backup Battery (Optional)

    2,000 mAh (Lithium Battery)
    Max. Operating Hours: 4 Hours
    Max. Standby Hours: 7 Hours
    Estimated Charging Time: 5 Hours

  • Operating Temperature

    -5°C to 45°C

  • Operating Humidity

    10% to 90% RH (Non-condensing)

  • Dimensions

    154 mm*138 mm*34 mm (L*W*H)

  • Gross Weight

    SenseFP M2: 0.99 kg
    SenseFace M2F-LR: 1.03 kg

  • Net Weight

    SenseFP M2: 0.40 kg
    SenseFace M2F-LR: 0.43 kg

  • Supported Software

    Mobile App: ZKBio Zlink
    Cloud-based Software: ZKBio Zlink
    On-Premise Software: ZKBio Time

  • Installation

    Wall-mount (Compatible with Asian Gang Box / Single Gang Box)

  • Certifications

    ISO14001, ISO9001,CE, FCC, RoHS
