SenseFP M1

SenseFP M1

0,00 EGP

10 متوفر في المخزون

SKU: SenseFP M1

تحميل ورقة البيانات (Download Datasheet PDF)

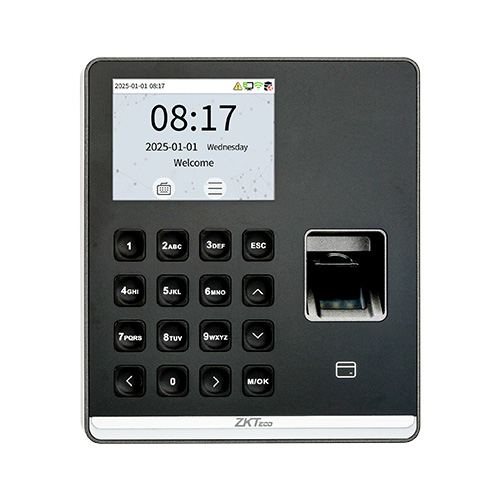

SenseFP M1 is a time and attendance terminal which simplifies attendance solutions It is aimed at small and  medium-sized businesses (SMEs) that want to manage their workforce reliably and affordably.

SenseFP M1 offers flexible authentication options, such as fingerprint authentication, RFID card verification  and password entry to suit different workplace preferences. The terminal adopts the ZK optical fingerprint  algorithm, enabling fast fingerprint authentication less than 1.5 seconds.

What makes SenseFP M1 stands out is that the terminal can connect to Wi-Fi and integrate with ZKBio Zlink.  This lets users manage employees and equipment, set attendance rules and check real-time attendance  reports on their desktop or mobile device.

المواصفات الفنية (Parameters)

Parameters

  • Model

    SenseFP M1

  • Display

    2.8″@ TFT Color LCD Screen (320*240)

  • Operation System

    Linux

  • Hardware

    RAM: 8MB; ROM: 16MB
    Speaker: 8ohm @1W
    Physical Keypad: 16 Keys
    Fingerprint Sensor: ZK Optical Sensor
    Casing Color: Black and White

  • Authentication method

    Fingerprint / Card / Password (Physical Keypad)


  • Fingerprint Capacity

    500 (1:N) (Standard)

  • Card Capacity

    500 (1:N) (Standard)

  • User Capacity

    500 (1:N) (Standard)

  • Transaction Capacity

    100,000 (1:N) (Standard)

  • Max. User Password Length

    6 Digits

  • Biometric Authentication Speed

    less than 1.5 sec (Fingerprint)

  • False Acceptance Rate (FAR) %

    FAR < 0.0001% (Fingerprint)

  • False Rejection Rate (FRR) %

    FRR <0.1% (Fingerprint)

  • Biometric Algorithm

    ZKFingerprint V13.0

  • Card Type

    ID Card@125 kHz (Standard)
    IC Card@13.56 MHz (Optional)

  • Standard Functions

    DST, Up to 14-digit User ID, Record Query, Automatic Status Switch, Multiple Authentication Methods, T9 Keyboard (Input), Online Firmware Upgrade

  • Optional Functions

    IC Card

  • Power Supply

    DC 5V 2A

  • Operating Temperature

    0°C to 45°C

  • Operating Humidity

    20% to 80% RH (Non-condensing)

  • Dimensions

    135.5 mm * 118.23 mm * 35.95 mm (L*W*H)

  • Gross Weight

    0.245 Kg

  • Supported Software

    Mobile App: ZKBio Zlink
    Cloud-based Software: ZKBio Zlink

  • Installation

    Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)

  • Certifications

    ISO14001, ISO9001, CE, FCC, RoHS
