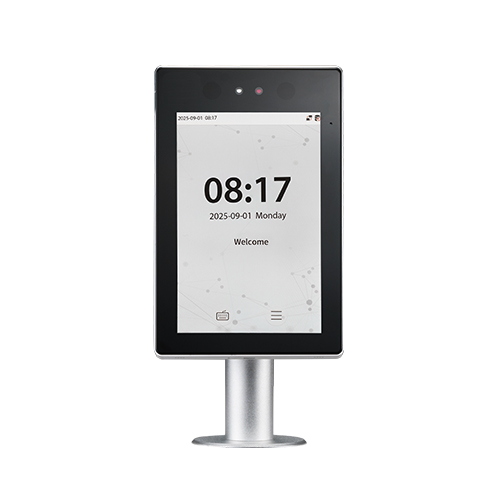

ProFace X a fully upgraded version of the ProFace product line, which is designed to deal with all kinds of scenarios. It's powered by the latest ZKTeco-customized CPU for running the intellectualized engineering facial recognition algorithm to boost up the performance in all aspects.
With its powerful core and the latest facial recognition algorithm, the ProFace X facial recognition capability has reached a new height in the biometrics industry with a maximum of 100,000 facial templates, facial recognition speed less than 0.09 sec per face, ultimate anti-spoof ability against almost all types of fake photos and videos attack.
Other than the powerful core, ProFace X is also equipped with the latest face capture system, which enables the terminal to recognize faces under extreme strong light conditions (50,000 lux), and a microwave detector to precisely evaluate the distance between the user and the device for waking up the terminal.
ProFace X comes with a robust design that can work in extreme weather conditions from -30°C to 60°C (-22°F to 140°F) ; The IP68 dust and waterproof standard and IK04 protection standard also enhance its outdoor durability.
ProFace X integrates with the ONVIF video protocol to connect to the ONVIF NVR for video surveillance and recording. Moreover, ProFace X supports SIP Protocol connect to the indoor unit.
المواصفات الفنية (Parameters)
Parameters
-
Face Capacity
30,000 (1:N) ;
100,000 (Optional) -
Palm Capacity
5,000 (Optional)
-
Users / Card Capacity
100,000 (Optional)
-
Transaction Capacity
1,000,000 (Optional 2,000,000)
-
User Photo Capacity
10,000
-
Event Photo Capacity
7,500
-
Compatibility
Security Relay Box
Wiegand / RS485 Slave Reader with FP / RFID / Barcode / QR-code
Software: ZKBio CVSecurity -
Hardware
1.2GHz Quad Core Customized Computer
Vision CPU
1G RAM / 8G Flash
8″ (400lux) IPS Touch LCD
ID Card
IC Card
Multi-Tech Card Module:
Module 1: ID & IC & DESFire EV1 / EV2 & Felica
Module 2: ID & IC & DESFire EV1 / EV2 & FeliCa & HID Prox & HID iClass
2MP WDR Low Light Camera
Hi-Fi Voice
Microphone
Distance Detection Sensor
Reset Button and Tamper Switch -
Access Control Interface
Lock Relay Output / Alarm Output / Auxiliary Input / Exit Button / Door Sensor
-
Special Functions
IP68 & IK04
0.09s High Speed Face Verification
Live Face detection
Communication Https Encrypted Optional
Event SnapshotVideo Intercom :
ZKTeco Private Protocol via TCP/lP
Support Devices:
Standalone Terminal: Proface X
Indoor Monitor: VT07-B01, VT07-B01-WStandard SIP Protocol
Support Devices:
Standalone Terminal: Proface X
Indoor Monitor: VT07-B22L, VT07-B26L-W
Software: ZKBio CVSecurity, BioTalk Pro
Mobile App: ZKBio ZexusONVIF Protocol
(Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A) -
Standard Functions
Access Levels, Groups, Holidays, DST, Duress Mode (Password), Anti-Passback,
Record Query, Custom Wallpaper & Screen Saver, Tamper Switch Alarm -
Communication
TCP / IP / Wiegand Input / Output / Wi-Fi (Optional) / RS485* / RS232*
-
Additional Info
-
Algorithm
ZKFace 3.6 & ZKPalmVein V20.1
-
Operating Temperature
-30°C ~ 60°C (-22°F~ 140°F)
-
Operating Humidity
≤ 93%
-
Storage Temperature
-40°C ~ +65°C
-
Storage Humidity
≤ 93%
-
Net Weight
853 g
-
Dimensions (L * W * H)
227*143*26mm
-
Power
-
Operating Voltage
12V DC
-
Current Draw
< 2,000 mA
-
Order ID
ProFace X: AC01-PF12H-P47
ProFace X[CH]: AC01-PF13H-P47
