Function

Transmission Distance

<!–{v.name}–>

HDCVI_Non-POC Camera-720P: max 350 m (1148.29 ft); 1080P: max 250 m (820.21ft); 4MP/4K: max 180 m (590.55 ft)

TVI_Non-POC Camera-720/1080P: max 250 m (820.21 ft); 5MP/4K: max 180 m (590.55 ft)

AHD_Non-POC Camera-720P: max 350 m (1148.29 ft); 1080P: max 250 m (820.21 ft); 5MP/4K: max 180 m (590.55 ft)

HDCVI/TVI/AHD_POC Camera—720P: max 150 m (492.13 ft); 1080P: max 150 m (492.13 ft); 4MP/5MP: max 150 m (492.13 ft); 4K: max 80 m (262.47 ft)

Transmission Signal

<!–{v.name}–>

1-ch HDCVI, TVI, AHD and CVBS

Transmission Media

<!–{v.name}–>

UTP CAT5/5E/6

Video Transmission Properties

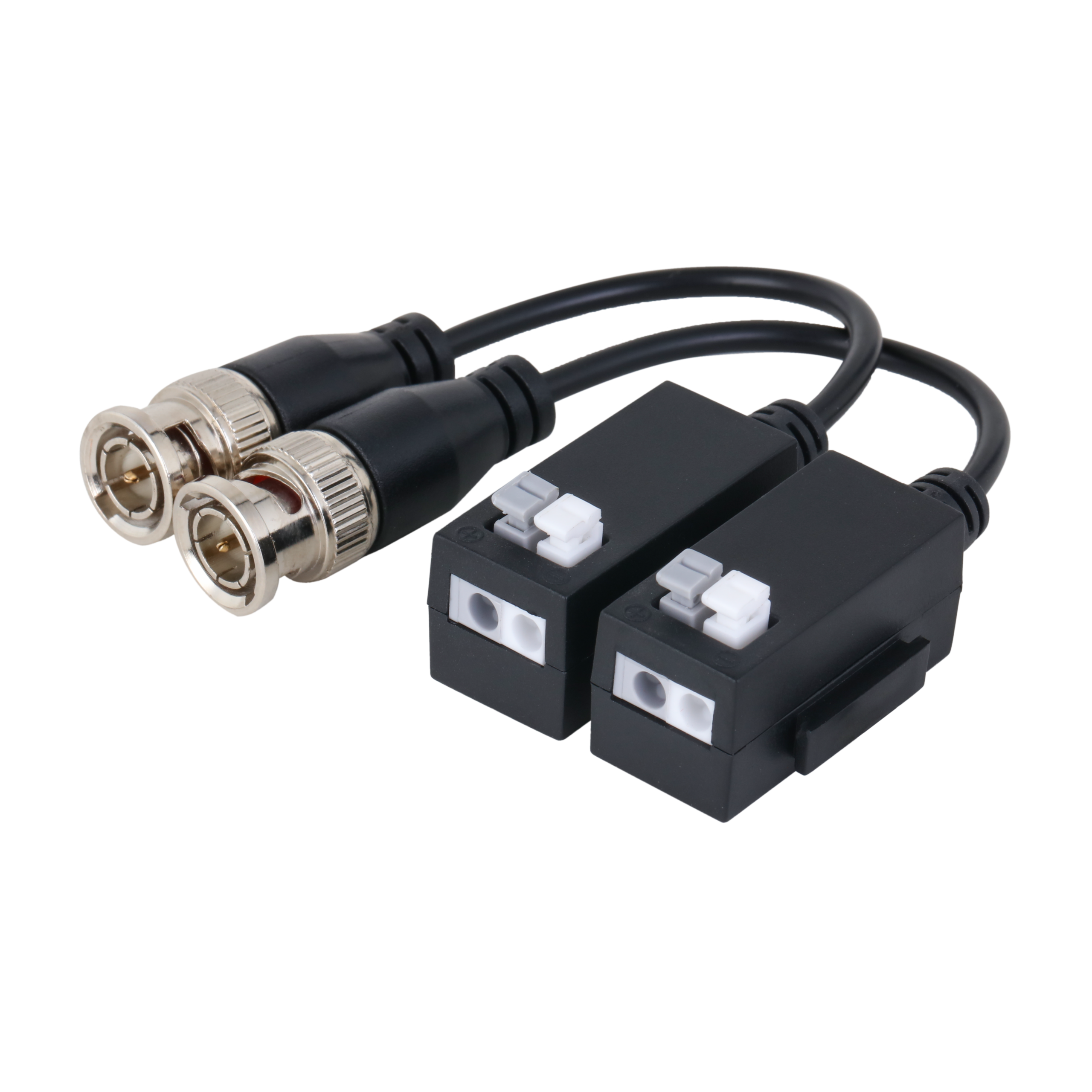

Coaxial Video Connector

<!–{v.name}–>

Male BNC

Connection Way

<!–{v.name}–>

Spring clamp type

Compatible Format

<!–{v.name}–>

HDCVI, TVI, AHD, CVBS

Resolution

<!–{v.name}–>

720p, 1080p, 4 MP, 5 MP, 4K

Anti-interference

<!–{v.name}–>

>60 dB

Protection

ESD

<!–{v.name}–>

1a contact discharge electricity level 3

1b air discharge electricity level 3

Per: IEC61000-4-2

Impedance

BNC Male Impedance

<!–{v.name}–>

75 Ω

UTP Cable Impedance

<!–{v.name}–>

100 Ω

Physical Properties

Size

<!–{v.name}–>

155 mm × 21 mm × 20 mm (6.10″ × 0.83″ × 0.79″)

Shell

<!–{v.name}–>

ABS

Color

<!–{v.name}–>

Black

Weight

<!–{v.name}–>

20.5 g/pair (0.05 lb)

Stability

MTBF

<!–{v.name}–>

>10,000 hrs

Environmental

Operating Temperature

<!–{v.name}–>

–10 °C to +55 °C (–14 °F to +131 °F）

Storage Temperature

<!–{v.name}–>

–20 °C to +70 °C (–4 °F to +158 °F)

Operating Humidity

<!–{v.name}–>

0–95% (RH), non–condensing

Certification

Certification

<!–{v.name}–>

CE: EN 5032, EN 55035, EN 61000-3-2, EN 61000-3-3

FCC: FCC Part 15
