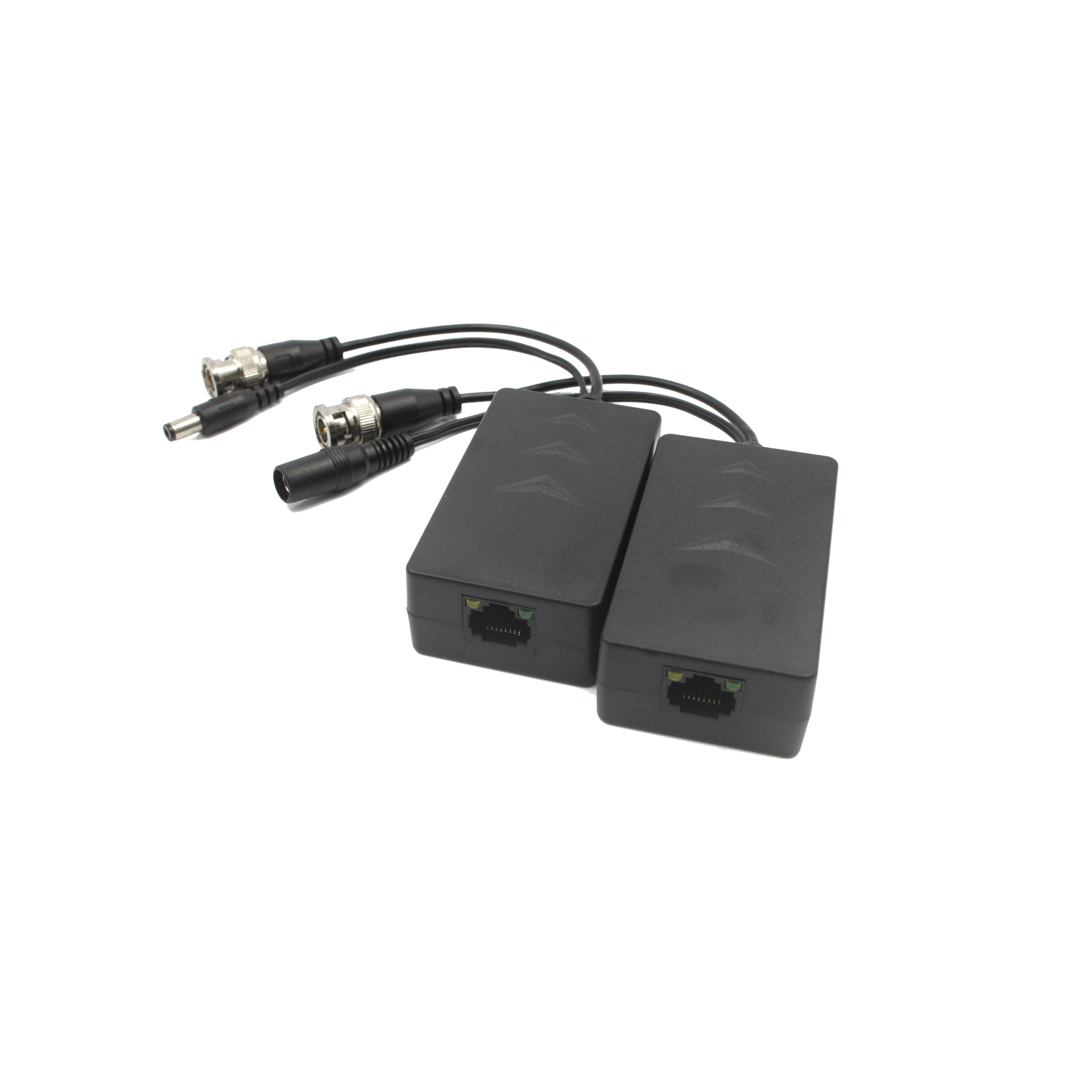

1-Channel Passive HDCVI Balun with Power
المميزات الرئيسية (Key Features)
> Input voltage of 24–36 VDC, it can provide 12 VDC, 8 W (max) power supply to remote cameras,
> simplify engineering wiring.
> Transmits live video signals without delay.
> The transmission distance is up to 400 meters.
> Uses single UTP (CAT5E/CAT6) real-time transmit 1-ch HD video signal and 1-ch DC
> power.
> Excellent protection against lightning, static, and more.
> Features ABS engineering plastics shell and RJ-45 ports.
المواصفات الفنية (Specifications)
| Model | PFM801-4MP | ||
| Properties | |||
| Transmission Signal | 1 channel | ||
| Transmission Distance | HDCVI: 720P: max.400m(1312.34ft); 1080P: max. 250m(820.21ft); 4MP: max. 200m(656.17ft) |
||
| Power Supply | Input Voltage | Distance | Output Power |
| DC24 | 0-100m | DC12V 8W | |
| 100-200m | DC12V 6W | ||
| 200-300m | DC12V 3W | ||
| DC36 | 0-300m | DC12V 8W | |
| Category Type | UTP CAT5E/6 | ||
| Video Transmission Properties | |||
| Coaxial Video Connector | BNC-M | ||
| Connection Way | RJ45 | ||
| Compatible Format | HDCVI/TVI/AHD/CVBS | ||
| Resolution | 720P/1080P/4MP | ||
| Anti-interference | >60db | ||
| Protection | |||
| ESD | 1a contact discharge electricity level 3 | ||
| 1b air discharge electricity level 3 | |||
| Per: IEC61000-4-2 | |||
| Coaxial Cable Connector | 2KV(common-code) | ||
| Per: IEC61000-4-5 | |||
| UTP Cable Connector | 2KV(different-code), 4KV(common-code) | ||
| Per: IEC61000-4-5 | |||
| Impedance | |||
| BNC Male | 75 ohms | ||
| UTP Cable | 100 ohms | ||
| Physical Properties | |||
| Dimension(L*W*H) | 72.6mm*42.5mm*24.5mm(2.86”x1.67”x0.96”) | ||
| Shell | ABS | ||
| Color | Black | ||
| N.W. | 66.4g(0.15lb)/57.4g(0.13lb) | ||
| Stability | |||
| MTBF | >10000H | ||
| Environmental | |||
| Operating Temperature | -10℃~+55℃(14℉~131℉) | ||
| Storage Temperature | -20℃~+70℃(-4℉~158℉) | ||
| Humidity | 0~95%(non-condensing) | ||
