• Delivered with a recess box for recess mount.
• Built-in heating module supports operation at a very low temperature.
• Metal casing.
• Supports batch configuration.
• Supports call and intercom with the connected indoor stations and APP.
• Supports video monitoring, security alarm, and tamper alarm.
• When used with a magnetic lock, it is recommended to use a dedicated access control power supply.
• Built-in IC card reader.

المواصفات الفنية (Specifications)

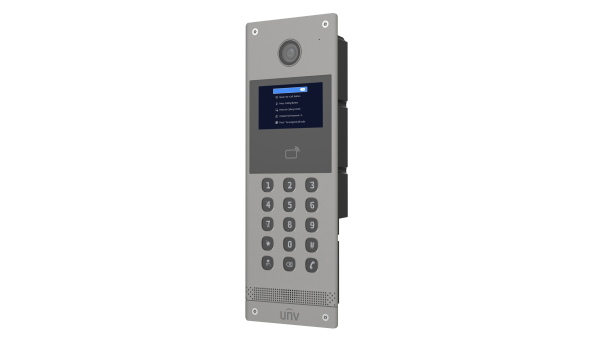

	OEU-301S-HMKA
Basic Business
WDR	Support DWDR
Protocol	Private protocol
Button	15 buttons with braille Buttons layout: Row 1: 1/2/3 Row 2: 4/5/6 Row 3: 7/8/9 Row 4: */0/# Row 5: Management center/Call/Cancel
Network protocol	TCP/IP, IPv4, HTTP, RTP, RTSP, NTP
Specification Index
Card Capacity	10000
Maximum Connected Indoor Station	500
Hardware Specification
FOV	Horizontal: 106.9° Vertical: 56.9° Diagonal: 127.9°
Power Consumption	PoE: 10.73W DC12V: 8.62W
Volume Adjustment	Support
Audio Quality	Noise suppression, echo cancellation, AGC
Audio Input	1 x Built-in omnidirectional microphone
Audio Output	1 x Built-in speaker
Audio Compression Bitrate	128Kbps
Power Supply	DC12V ±25%, IEEE802.3af PoE power supply
Operating System	Linux
Illuminator	IR light (adaptive)
Screen Size	3.97 inch
Weight	2.10kg
Mount Method	Wall mount
Network	100Mbps network port, supports IEEE802.3af PoE power supply
Interface	Power*1, network port*1, RS485*1, IO input*4, IO output*2, door lock*2 (electric lock/door magnet), door opening button*2, door magnet*2, tamper button*1
Dimensions (L x W x H)	125mm*358mm*53mm
Operating Environment	-40°C to 60°C, 10% to 90%, noncondensing, outdoor
Operating Frequency	13.56MHz
Compliance
NDAA Compliant	Support
