• Front panel: Plastic composite.
• Supports batch configuration.
• Supports call and intercom with the connected indoor stations and APP.
• Supports monitoring functions, security alarm, tamper alarm.
• Supports Wi-Fi.
• When used with a magnetic lock, it is recommended to use a dedicated access control power supply.
• Built-in IC card reader.

المواصفات الفنية (Specifications)

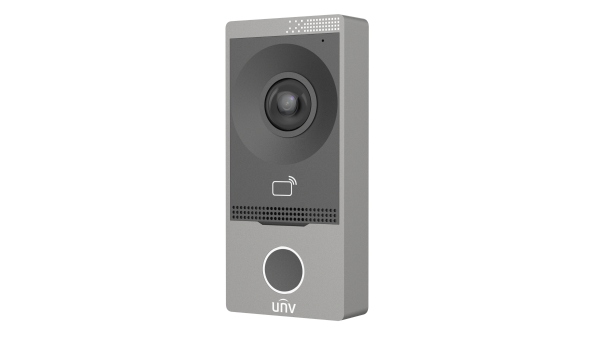

	OEU-201B-HMK-W
Hardware Specification
Operation System	Linux
Supplement Light	IR light(Adaptive infrared compensation)
FOV	Horizontal:124.3° Vertical:67.5° Diagonal:147.2°
Power Consumption	＜10W
Volume Adjustment	Adjustable
Audio Quality	Noise suppression, echo cancellation and AGC
Audio Input	1 built-in omnidirectional microphone
Audio Output	1 built-in speaker
Audio Compression Standard	PCM, G711, MP3
Audio Compression Bitrate	128Kbps
Protection Level	IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.)
Power Supply	DC 12V±25% input;IEEE802.3af, Standard PoE
Weight	0.261Kg
Mount Method	Wall mounted
Network	100Mbps network port, supports IEEE802.3af PoE power supply
Interface	Power *1, network port *1, WIFI, RS485, door lock interface *2, IO input *4
Dimensions (L x W x H)	78mm×170mm×34mm
Operating Environment	﹣30℃~﹢60℃,10%～90%, non-condensing, outdoor
Operating Frequency	13.56MHz
Basic Business
WDR	Support DWDR
Protocol	UNV private protocol
Button	1 physical button
Network protocol	TCP/IP, IPv4, HTTP, RTP, RTSP, NTP
Specification Index
Card Capacity	2000
Linked Indoor Station Capacity	20
Compliance
NDAA Compliant	Support
