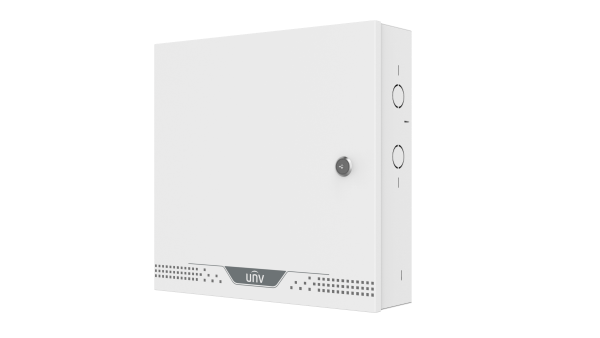

OER-604

0,00 EGP

10 متوفر في المخزون

SKU: OER-604

• ARM processor provides high concurrent processing speed.
• Supports network transparent transmission.
• Supports storage battery connection.
• Supports fire alarm linkage for enhanced security.
• Supports multiple authentication methods, including card, password, card&password, and QR code.
• Supports up to 200,000 cards and 300,000 events storage.
• Supports connecting to EZAccess platform(Only permission issuance is supported), UNV Guard server.
• Supports device configuration through the web interface.
• Built-in door lock power supply, no additional power supply required.
• Supports local saving during the network interruption and resuming interrupted data when the network reconnects.
• Supports multi-door interlock, anti-passback and door opening with duress password.

المواصفات الفنية (Specifications)

 OER-604
Specification Index
Card CapacityCommon card + personnel password: 200,000
Duress card + duress password: 1,000
Other cards: 100
Event Capacity300,000
Time Template256
Holiday Template256
Check TemplateSupports up to 16 check templates configured by weekly schedule, up to 8 time periods per day, and up to 3 authentication modes per time period
Basic Business
Communication ModeTCP/IP
Hardware Specification
Network Interface1 x 100Mbps Ethernet interface
Number Of Controllable Door4
Wiegand Interface8 x Wiegand input
RS485 Interface4
IO Input1 x fire input, 4 x zone input, 8 x case input
IO Output8
Power Output2 x DC12V (maximum current for door lock: 5A, for card reader: 1.5A)
Door Lock Interface4 x door lock control (NC+/NO+/COM)
4 x door magnet, 4 x exit button
Tamper ButtonSupport
ApplicationIndoor
Operating Temperature-30°C to 65°C
Rated Input VoltageAC100V to AC240V (50/60Hz)
Spare Power SupplyDC12V/7AH, user-prepared
Air Circuit BreakerBuilt-in
Mount MethodWall mount
IndicatorPower indicator: Steady red when the device is connected to power
Operation indicator: Blinks green when the operation is normal
Door lock indicator: Steady green when the lock is open
Fault indicator
485 indicator
Charging indicator
Network indicator
Dimensions (L x W x H)342mm*325.5mm*88mm
Weight3700g
Compliance
NDAA CompliantSupport
