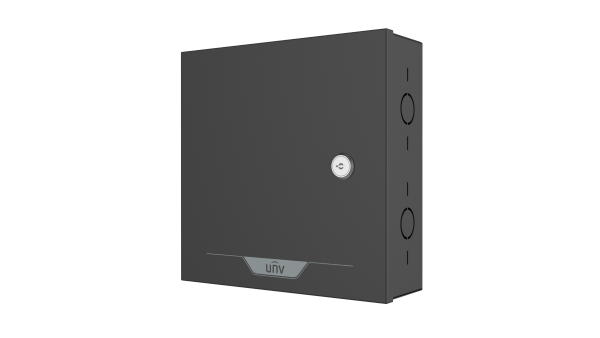

OER-502

0,00 EGP

10 متوفر في المخزون

SKU: OER-502

• ARM processor provides high concurrent processing speed.
• Supports network transparent transmission.
• Supports fire alarm linkage for enhanced security.
• Supports multiple authentication methods, including card, password, card&password, and QR code.
• Supports up to 20,000 cards and 50,000 events storage.
• Supports connecting to EZAccess platform(Only permission issuance is supported), UNV Guard server.
• Supports device configuration through the web interface.
• Supports door magnet detection.
• Supports local saving during the network interruption and resuming interrupted data when the network reconnects.
• Supports multi-door interlock, anti-passback and door opening with duress password.

المواصفات الفنية (Specifications)

 OER-502
Specification Index
Card CapacityCommon card + personnel password: 22,000
Duress card + duress password: 1,000
Other cards: 100
Event Capacity50,000
Time Template256
Holiday Template256
Check TemplateSupports up to 16 check templates configured by weekly schedule, up to 8 time periods per day, and up to 3 authentication modes per time period
Basic Business
Communication ModeTCP/IP
Hardware Specification
Network Interface1 x 100Mbps Ethernet interface
Number Of Controllable Door2
Wiegand Interface4 x Wiegand input
RS485 Interface1
IO Input1 x fire input, 4 x case input
IO Output4
Power Output1 x DC12V (maximum current for door lock: 5A, for card reader: 1.5A)
Door Lock Interface2 x door lock control (NC+/NO+/COM)
2 x door magnet, 2 x exit button
Tamper ButtonNot support
ApplicationIndoor
Operating Temperature-30°C to 65°C
Rated Input VoltageAC100V to AC240V (50/60Hz)
Spare Power SupplyDC12V/7AH, user-prepared
Air Circuit Breaker/
Mount MethodWall mount
IndicatorPower indicator: Steady red when the device is connected to power
Operation indicator: Blinks green when the operation is normal
Door lock indicator: Steady green when the lock is open
Fault indicator
485 indicator
Charging indicator
Network indicator
Dimensions (L x W x H)230mm*227.8mm*75.8mm
Weight2100g
Compliance
NDAA CompliantSupport
