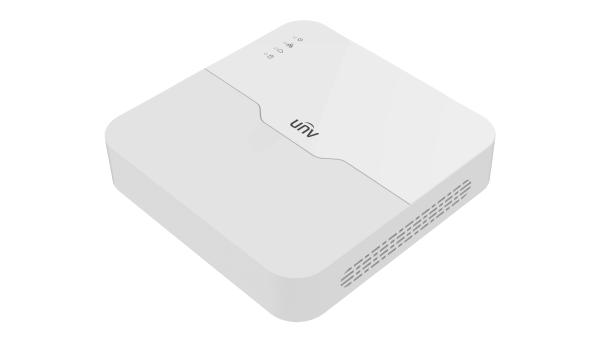

| | NVR301-04LS3-P4 | NVR301-08LS3-P8 | NVR301-16LS3-P8 |
| Decoding |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25 | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30 | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30, 16 x D1@25 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width |
| Audio Compression | G.711A, G.711U |
| Network |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video/Audio Input |
| IP Video Input | 4-ch | 8-ch | 16-ch |
| Video/Audio Output |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 1/4 | 1/4/6/8/9 | 1/4/6/8/9/16 |
| Corridor Mode Screen | 3/4 | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
| Snapshot |
| FTP/Schedule/Event Snapshot | 1-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
| Recording |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 4-ch | 8-ch | 16-ch |
| Smart Function |
| Smart by IPC | Total 4-ch(Face Detection, SIP, UMD) |
| VCA Search | Behavior Search |
| Alarm |
| General Alarm | Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI Language |
| GUI Language | 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian |
| Hard Disk |
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| External Interface |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| USB | Rear panel: 2 × USB2.0 |
| RS485 | N/A |
| RS232 | N/A |
| Alarm In | N/A |
| Alarm Out | N/A |
| Power Supply | DC 48 V/1.35 A | DC 52 V/1.8 A | DC 52 V/1.8 A |
| PoE |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port, Max 54 W in total | Max 30 W for single port, Max 75 W in total | Max 30 W for single port, Max 75 W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| Working Environment |
| Working Temperature | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 9W |
| Dimensions |
| Weight (without HDD) | ≤ 0.6Kg (1.32lb) | ≤ 0.8Kg (1.76lb) | ≤ 0.8Kg (1.76lb) |
| Dimensions | 205mm × 205mm × 46mm (8.1"×8.1"×1.8") | 270mm × 205mm × 46mm (10.6"×8.1"×1.8") | 270mm × 205mm × 46mm (10.6"×8.1"×1.8") |
| Certification |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
