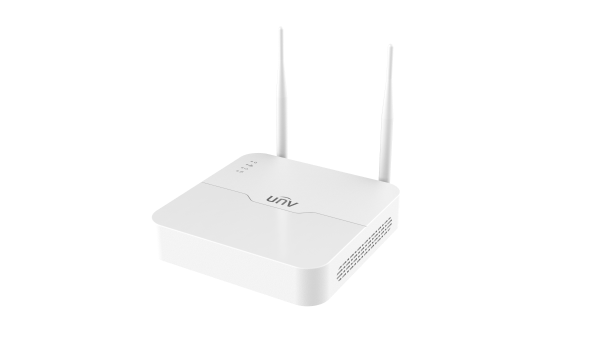

| | NVR301-08S4-LW |
| Decoding |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 1 x 8MP@30, 2 x 5MP@25, 3 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 3840 pixels in length and 2160 pixels in width |
| Audio Compression | G.711A, G.711U |
| Network |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Max Users Can Be Added | 32 |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, SMTP, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video/Audio Input |
| IP Video Input | 8-ch |
| Video/Audio Output |
| Video Output | Support 1-ch HDMI, 1-ch VGA, HDMI and VGA simultaneous output |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| HDMI Standard | HDMI2.0 |
| 3.5mm Audio Output | 1-ch |
| Liveview Display | 1/4/6/8/9 |
| Default Num of Live Screen | 9 |
| Corridor Mode Screen | 3/4/5/7/9 |
| Playback Screen | 1/4/9 |
| Two-way Audio |
| Two-way Audio | N/A |
| Snapshot |
| FTP/Schedule/Event Snapshot | 1-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
| Recording |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Num of Concurrent Playback | 16-ch |
| Synchronous Playback in Local | 8-ch |
| Smart Function |
| VCA Detection by IPC | Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD) |
| VCA Search | Behavior Search |
| Smart by IPC | Total 4-ch(Face Detection, SIP, UMD) |
| Capacity of Smart Snapshots |
| Capacity of Snapshot Records | 2 millions records for SIP |
| Alarm |
| General Alarm | Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI Language |
| GUI Language | 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian |
| Hard Disk |
| SATA | 1 SATA Interface |
| Capacity | Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 35°C) |
| External Interface |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| USB | Rear panel: 2 × USB2.0 |
| RS485 | N/A |
| RS232 | N/A |
| Alarm In | N/A |
| Alarm Out | N/A |
| Buzzer | Support |
| Power Supply | DC 12 V/2 A |
| WiFi |
| Frequency | 2.4 GHz |
| Transmission Rate | 150 Mbps |
| Wireless Standards | IEEE 802.11b/g/n, IEEE 802.11ax |
| Working Environment |
| Working Temperature | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | <12W |
| Heat Dissipation | Radiator |
| Dimensions |
| Weight (without HDD) | ≤0.6Kg (1.32lb) |
| Height | 1U |
| Dimensions | 205mm*205mm*45.6mm |
| Certification |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130 |
| FCC | Part15 Subpart B |
| Compliance |
| NDAA Compliant | Support |
