• Flexible Gigabit access. With flexible 8/24/48 Gigabit interface access, NSW5130 Series is compatible with non-multiplexed SFP interfaces to enable high density Gigabit access and protect users’ investment.
• Multiple services. NSW5130 Series supports multicast protocols such as IGMP, IGMP Snooping , FRRP (fast ring network recovery) protocol and FLRP (fast link recovery protocol).
• Sound security control policy. NSW5130 Series provides multiple authentication modes based on MAC address, 802.1x, and Portal. It supports dynamic or static binding of user identity, such as user account, IP, MAC, VLAN, and interface.
• Rich QoS policy. NSW5130 Series supports traffic identification on interfaces. It provides multiple stream classifications based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN.
• Outstanding management. Compatible with SNMPv1/v2/v3 standard network management protocol, NSW5130 Series provides CLI command lines and a Web management interface.

المواصفات الفنية (Specifications)

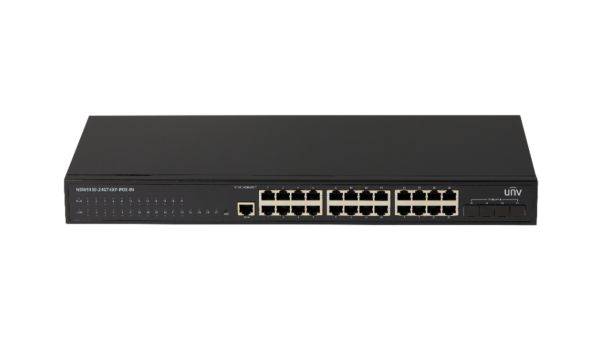

	NSW5130-24GT4XP-POE-IN
Hardware Specification
Ports Type	24*10/100/1000Mbps RJ45 PoE port, 4*10Gbps SFP+ port
Switching capacity	128Gbps
Forwarding performance	95.2Mpps
MAC	12K
Max.Power	410W
Power Supply	AC: 100 to 240V, 50/60Hz;
Cooling Fans	2
Indicator	PWR, RUN, LINK/ACT, Alarm, PoE
Dimensions (W×D×H)	440mm*208mm*44mm
Weight	3KG
Operating Temperature	0℃~40℃
Operating Humidity	10% to 80%, non-condensing
PoE Mode	ModeA (1236)
Max.PoE Power	370W
PoE Standard	IEEE 802.3af, IEEE 802.3 at
Software Specification
MAC	Support static, dynamic, black hole MAC entries Support source MAC address filtering
Ethernet	Support port aggregation, port mirroring, port isolation, speed limit, strom control
VLAN	Support 4K VLAN Support VLAN based on MAC/ IP subnet/authentication policy/interface VLAN Support QinQ
Security	Support local and centralized authentication based on MAC address Support local and centralized authentication based on 802.1x Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection Support port isolation, port security Support broadcast storm suppression Support SSH2.0
QoS	Support 8 priority queues per port Support traffic classification based on 802.1p/DSCP/TOS Support speed limit on ports and streams Support SP, WRR, SP + WRR queue scheduling
Reliability	Support STP, RSTP, MSTP
DHCP	Support DHCP Client, DHCP Server, DHCP Snooping
Multicast	Support IGMP Snooping
Maintenance	Support real-time temperature detection and alarm Support SNMP, CLI, Web management, Support local and remote output of system logs, operation logs, debugging information
