• Supports device management on the web interfaces.
• Supports IGMP v1/v2 Snooping, STP/RSTP, ERPS.
• All metal casing, secure and reliable.
المواصفات الفنية (Specifications)

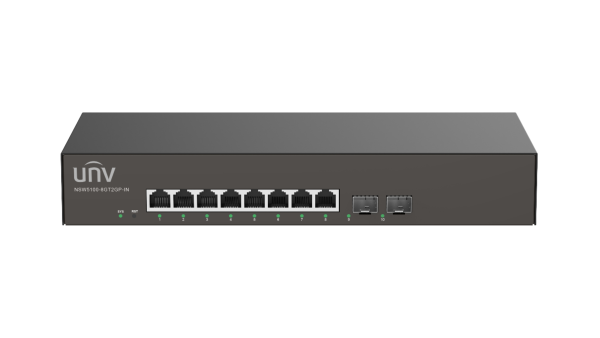

| NSW5100-8GT2GP-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 8*10/100/1000Mbps RJ45 port, 2*1000Mbps SFP port | |||||||
| Switching capacity | 20 Gbps | |||||||
| Forwarding performance | 14.88 Mpps | |||||||
| Packet Buffer | 3M bits | |||||||
| MAC | 8K | |||||||
| Cooling Fans | 0 | |||||||
| Max.Power | 10W | |||||||
| Power Supply | AC: 100 to 240V, 50/60Hz; | |||||||
| Weight | 0.90kg | |||||||
| Dimensions (W×D×H) | 280 × 125 × 44 mm | |||||||
| Operating Temperature | 0℃ to 45℃ | |||||||
| Operating Humidity | 5% to 95%, non-condensing | |||||||
| Indicator | PWR: Steady on: Normal power input Off: Abnormal power input LINK/ACT: Off: The port is disconnected Steady on: The port is connected Blinking: The port is transmitting data | |||||||
| Software Specification | ||||||||
| Ethernet | Auto-negotiation, 10/100/1000M half-duplex/full-duplex Support port rate adjustment Support port flow control Support link aggregation（Static-LAG & LACP） Support port flow statistics Support port Loopback-detection Support enabling/disabling ports | |||||||
| MAC | 8K, auto-learning, auto-update | |||||||
| VLAN | Access/Trunk/Hybrid Default VLAN | |||||||
| Maintenance | Support a N :1 port mirroring Allow to import, export, back up, and restore factory defaults on the Web interface | |||||||
| Security | MAC/IP ACL Mac Limit | |||||||
| QoS | Support traffic classification based on DSCP/TOS Support speed limit on ports and streams Support SP, WRR queue scheduling | |||||||
| Reliability | Support STP, RSTP, Support ERPS( single ring) | |||||||
| Multicast | Support IGMP v1/v2 snooping | |||||||
| Brand |
|---|
