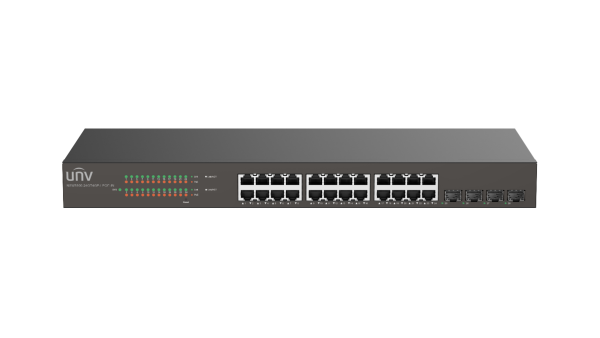

NSW5100-24GT4GP-LPOE-IN

NSW5100-24GT4GP-LPOE-IN

0,00 EGP

10 متوفر في المخزون

SKU: NSW5100-24GT4GP-LPOE-IN

• Supports device management on the web interfaces.
• Supports IGMP v1/v2 Snooping, STP/RSTP, ERPS.
• All metal casing, secure and reliable.

المواصفات الفنية (Specifications)

 NSW5100-24GT4GP-LPOE-IN
Hardware Specification
Ports Type24*10/100/1000Mbps RJ45 PoE port,
4*1000Mbps SFP port
Switching capacity56 Gbps
Forwarding performance41.66 Mpps
Packet Buffer3M bits
MAC8K
Cooling Fans1
Max.PoE PowerMaximum total power:250W.
Maximum PoE power for single port: 30W
Max.Power270W
Power Supply AC: 100 to 240V, 50/60Hz;
Weight2.32kg
Dimensions (W×D×H)440 × 180 × 44 mm
Operating Temperature 0℃ to 45℃
Operating Humidity5% to 95%, non-condensing
Indicator PWR:
Steady on: Normal power input.
Off: Abnormal power input.
PoE:
Off: No PoE power supply.
Steady on: PoE power supply is normal.
LINK/ACT:
Off: The port is disconnected.
Steady on: The port is connected.
Blinking: The port is transmitting data.
Software Specification
Ethernet Auto-negotiation, 10/100/1000M half-duplex/full-duplex.
Support port rate adjustment.
Support port flow control.
Support link aggregation（Static-LAG & LACP）.
Support port flow statistics .
Support port Loopback-detection.
Support enabling/disabling ports .
MAC 8K, auto-learning, auto-update
VLAN Access/Trunk/Hybrid
Default VLAN
MaintenanceSupport a N :1 port mirroring.
Allow to import, export, back up, and restore factory defaults on the Web interface.
SecurityMAC/IP ACL
Mac Limit
QoS Support traffic classification based on DSCP/TOS.
Support speed limit on ports and streams.
Support SP, WRR queue scheduling.
ReliabilitySupport STP, RSTP, Support ERPS( single ring).
POE Allow to enable/disable PoE power supply
MulticastSupport IGMP v1/v2 snooping.
Compliance
NDAA CompliantSupport
