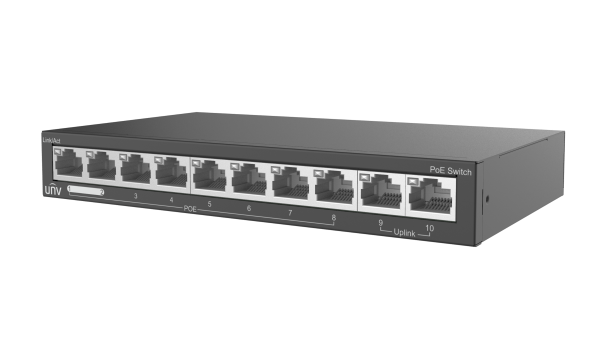

NSW2020-10T-POE-IN

NSW2020-10T-POE-IN

0,00 EGP

10 متوفر في المخزون

SKU: NSW2020-10T-POE-IN

• Multiple working modes to address your business needs: Default(Normal mode), EXTEND(Surveillance mode)
• Support port traffic control
• Up to 250m transmission distance on Extend mode
• Support buffer optimization
• All metal housing, safe and reliable

المواصفات الفنية (Specifications)

 NSW2020-10T-POE-IN
Hardware Specification
Ports Type10×100Mbps network ports (RJ45), including 8 PoE ports
Switching capacity2 Gbps
Packet Buffer448K bit
Forwarding performance1.49Mpps
Power Supply DC: 48/51V, powered by adapter(100 to 240V, 50/60Hz)
MAC1K
PoE StandardIEEE 802.3 at, IEEE 802.3af
PoE ModeModeB (4578)
Max.PoE PowerMax capacity:88W
Max capacity for single port: 30W
Prior Ports1 to 2
StandardsIEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Cooling Fans0
Max.Power94W
Operating Temperature 0°C to 45°C (32°F to 113°F)
Operating Humidity10% to 90% (noncondensing)
Indicator POWER:
Steady on: AC input is normal
Off: No AC input
No PoE Indicator
PoE-MAX：
off ：The POE power supply power of the whole machine is less than 80% of the specification
Steady on : The POE power supply power of the whole machine is greater than 85% of the specification
LINK/ACT：
Off: No link
Steady on: Linked
Flashing: Transmitting data
Dimensions (W×D×H)171*103*25mm
Weight0.29KG
Working ModeDefault (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
Compliance
NDAA CompliantSupport
