• Supports IEEE802.3 and IEEE802.3u standards.
• Supports 10/100Mbps or 10/100/1000Mbps self-adaptive Ethernet port.
• Supports auto MDI/MDIX.
• Supports IEEE802.3 flow control for full-duplex mode and backpressure for half-duplex mode.
المواصفات الفنية (Specifications)

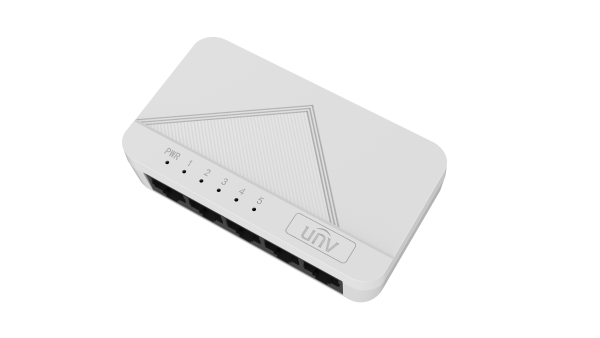

| NSW1010-5T-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 5 x 10/100Mbps port (RJ45) | |||||||
| Switching capacity | 1Gbps | |||||||
| MAC | 2K | |||||||
| Forwarding performance | 0.744Mpps | |||||||
| Standards | IEEE802.3 IEEE802.3u IEEE802.3x | |||||||
| Power Supply | DC: 5V 1A, powered by adapter (AC: 100 to 240V) | |||||||
| Carton Information | Carton dimensions: 435*280*395mm Carton quantity: 100PCS Carton weight: 14.2kg | |||||||
| Mount Method | Desktop mount, wall mount | |||||||
| Cooling Fans | 0 | |||||||
| Dimensions (W×D×H) | Product: 92*51*21.5mm Packaging: 93*82*51mm | |||||||
| Operating Temperature | -10 to 50°C (14°F to 122°F) | |||||||
| Operating Humidity | 10% to 90% (noncondensing) | |||||||
| Indicator | POWER: Steady on: AC input is normal Off: No AC input LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data | |||||||
| Weight | Product: 0.062kg Packaging: 0.132kg | |||||||
