• PoE supports IEEE 802.3af/at standards and provides a maximum output of 30W for each port.
• Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control.
• Multiple working modes to address your business needs: VLAN, CCTV.
• VLAN mode: Downlink ports can communicate only with uplink ports.
• CCTV mode: The port is forced to speed down to 10Mbps transmission rate. Data transmission and power supply distance up to 250 meters.Downlink ports can communicate only with uplink ports.
• Panel indicators monitor working status and assist in fault analysis.
• Operating temperature: -30℃ to 65℃.
المواصفات الفنية (Specifications)

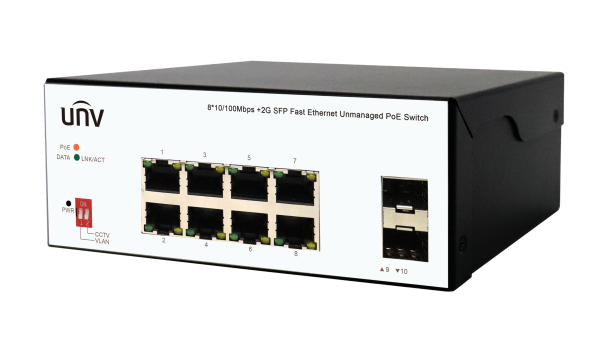

| ISW2000-8T2GP-POE-IN | ||||||||
| Hardware Specification | ||||||||
| Standards | IEEE802.3、IEEE802.3u、IEEE802.3z、IEEE802.3ab、IEEE802.3x、IEEE802.3af、IEEE802.3at | |||||||
| Ports Type | 8*10/100Mbps RJ45 Ports 2*1000Mbps SFP Slots | |||||||
| Switching capacity | 5.6 Gbps | |||||||
| Jumbo Frame | 16KBytes | |||||||
| Forwarding performance | 4.17Mpps | |||||||
| Packet Buffer | 2 M bit | |||||||
| MAC | 4K | |||||||
| Transfer Mode | Store-and-forward | |||||||
| Max.PoE Power | Max capacity: 120W Max capacity for single port: 30W | |||||||
| Dimensions (W×D×H) | 145*109*58mm | |||||||
| Operating Temperature | -30°C to 65 °C | |||||||
| Operating Humidity | 5% ~ 95% non-condensing | |||||||
| Storage Humidity | 0% ~ 95% non-condensing | |||||||
| Power Supply | DC:48-57V, Powered by adapter. Adapter: AC100-240V, 50-60Hz | |||||||
| Max.Power | 135W (including POE) | |||||||
| Indicator | PWR, LNK/ACT, PoE | |||||||
| Electrostatic Standard | Contact ±6KV, Air ±8KV | |||||||
| Surge Protection | Differential mode ±2KV Common mode ±4KV | |||||||
