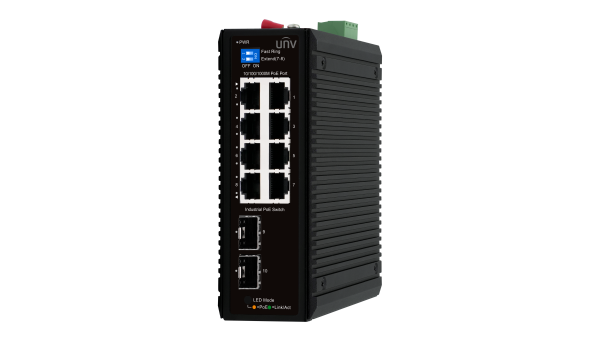

IS2000-8GT2GP-POE-IN@PWR120

IS2000-8GT2GP-POE-IN@PWR120

0,00 EGP

10 متوفر في المخزون

SKU: IS2000-8GT2GP-POE-IN@PWR120

• Support IEEE 802.3af/at standard. Port 1 supports HiPoE with a maximum of 60W.
• Working temperature -40~75°C, surge protection 6KV, ESD: Air 8KV, Contact 6KV
• 4PIN industrial terminal+ DC2.1 input interface, DC48-55V wide voltage input
• Support VLAN, Genius, Extend modes
• Support rail and wall mount installation

المواصفات الفنية (Specifications)

 IS2000-8GT2GP-POE-IN@PWR120
Hardware Specification
StandardsIEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z
Ports Type8*10/1000Mbps RJ45 PoE Ports
2*1000Mbps SFP Slots
Switching capacity20Gbps
Jumbo Frame10KBytes
Forwarding performance14.88Mpps
Max.PoE PowerMax capacity: 110W
Port1: Max capacity for single port: 60W
Port2-8: Max capacity for single port: 30W
Mode A 1/2 (-), 3/6 (+)
Max.Power120W
MAC8K
Transfer ModeStore-and-forward
Dimensions (W×D×H)138*108*51mm
Operating Temperature -40°C to 75 °C
Operating Humidity10% ~ 95% non-condensing
Storage Humidity5% ~ 95% non-condensing
Indicator PWR (Green)
Off: Powered off
On: Powered on
Ports 1-4 /1-8(Green)
Slow Flashing: 10/100/1000Mbps Link normal
Off: Link blocked
Fast Flashing: Data transmitting
POE(Yellow)
On: PoE powered on
Off: PoE powered off
Ports G5-G6 /G9-G10(Green)
On: 10/100/1000Mbps Link normal
Off: Link blocked
Flashing: Data transmitting
Electrostatic Standard Air 15KV, Contact 8KV (Class C)
Surge ProtectionCommon mode 6KV, Differential mode 2KV (Class B)
Power Supply DC:48-57V, powered by adapter (NVR-120-48, input voltage : 100-240V AC , output voltage : 48V DC, 2.5A , 40*125.2*113.5mm,DIN35 rail installation)
Working ModeFast Ring: Fast Ring on, T<2sExtend：Extend mode, ports 7-8 force 10Mbps to extend the transmission distance to 250meters, and automatically activate the PoE watchdog mode
ButtonDual color LED selection: default green (link data), switch yellow LED(PoE)
