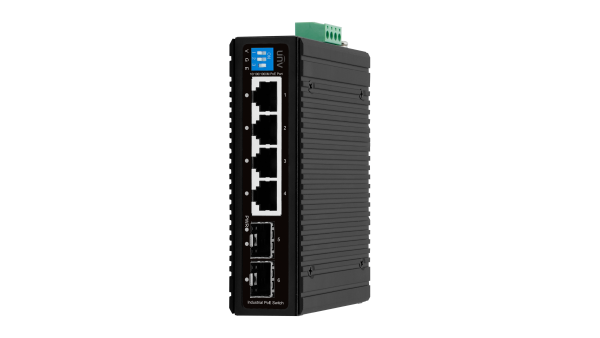

IS2000-4GT2GP-POE-IN@PWR75

IS2000-4GT2GP-POE-IN@PWR75

0,00 EGP

10 متوفر في المخزون

SKU: IS2000-4GT2GP-POE-IN@PWR75

• Support IEEE 802.3af/at standard. Port 1 supports HiPoE with a maximum of 60W.
• Working temperature -40~75°C, surge protection 6KV, ESD: Air 8KV, Contact 6KV
• 4PIN industrial terminal+ DC2.1 input interface, DC48-55V wide voltage input
• Support VLAN, Genius, Extend modes
• Support rail and wall mount installation

المواصفات الفنية (Specifications)

 IS2000-4GT2GP-POE-IN@PWR75
Hardware Specification
StandardsIEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z
Ports Type4*10/1000Mbps RJ45 PoE Ports
2*1000Mbps SFP Slots
Switching capacity12Gbps
Jumbo Frame10KBytes
Forwarding performance8.92Mpps
Max.PoE PowerMax capacity: 65W
Port1: Max capacity for single port: 60W
Port2-4: Max capacity for single port: 30W
Mode A 1/2 (-), 3/6 (+)
Max.Power75W
MAC8K
Transfer ModeStore-and-forward
Dimensions (W×D×H)120*87*34mm
Operating Temperature -40°C to 75 °C
Operating Humidity10% ~ 95% non-condensing
Storage Humidity5% ~ 95% non-condensing
Indicator PWR (Red)
Off: Powered off
On: Powered on
Ports 1-4 /1-8(Green)
Slow Flashing: 10/100/1000Mbps Link normal
Off: Link blocked
Fast Flashing: Data transmitting
Ports G5-G6 /G9-G10(Green)
On: 10/100/1000Mbps Link normal
Off: Link blocked
Flashing: Data transmitting
Electrostatic Standard Air 8KV, Contact 6KV (Class B)
Surge ProtectionCommon mode 6KV, Differential mode 2KV (Class B)
Power Supply DC:48-57V, powered by adapter (NVR-75-48, input voltage : 100-240V AC , output voltage : 48V DC, 1.6A , 32*125.2*113.5mm, DIN35 rail installation )
Working ModeV: VLAN mode, ports 1-4 are isolated from each other, communicating with ports 5-6, E: Extend mode, when the PoE port is in Extend mode, ports 1-4 force 10Mbps to extend the transmission distance to 250meters, G: PoE watchdog on
ButtonDual color LED selection: default green (link data), switch yellow LED(PoE)
