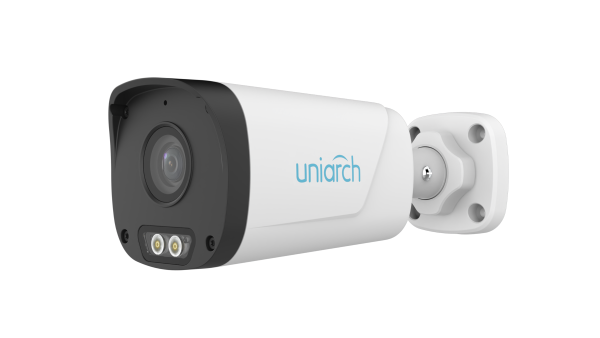

IPC-B232-AF40-DL-ECO

IPC-B232-AF40-DL-ECO

0,00 EGP

10 متوفر في المخزون

SKU: IPC-B232-AF40-DL-ECO

تحميل ورقة البيانات (Download Datasheet PDF)

المواصفات الفنية (Specifications)

 IPC-B232-AF40-DL-ECO
Camera
Max Resolution2 MP
Sensor1/3.0" CMOS
Min. IlluminationColor: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N> 52 dB
WDRDWDR
Lens
Focal Length4.0 mm
IrisF1.6
Field of View (H)67.3°
Field of View (V)37.2°
Field of View (D)77.8°
Lens TypeFixed
Iris TypeFixed
DORI
DORI Distance (Lens)4 mm
DORI Distance (Detect)73.5 m (241.0 ft.)
DORI Distance (Observe)29.4 m (96.4 ft.)
DORI Distance (Recognize)14.7 m (48.2 ft.)
DORI Distance (Identify)7.3 m (24.0 ft.)
Illuminator
Supplemental LightDual light
Illumination Distance (Warm Light)15 m (49.2 ft.)
Illumination Distance (IR)30 m (98.4 ft.)
Wavelength850 nm
Video
Video CompressionUltra 265, H.265, H.264
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps;
Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps;
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual streams
Smart IlluminationSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog
Image StabilizationN/A
Events
Basic DetectionMotion detection, Audio detection, Human body detection 2.0
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageN/A
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, QoS
Compatible IntegrationAPI, SDK
ClientAPP, Uniarch client
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
SecurityPassword Protection, Strong Password, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
User/HostUp to 32 users. 2 user levels: administrator and common user
Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A
Certification
ProtectionIP67 (IEC 60529)
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4)
FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863)
WEEE (2012/19/EU)
Packaging and Packaging Waste (94/62/EC)
General
PowerPoE (IEEE 802.3af)
Power ConsumptionMax. 3.5 W
Power InterfaceN/A
Dimensions196.5 mm × 73.0 mm × 72.9 mm (7.7" × 2.9" × 2.9") (L × W × H)
Weight0.22 kg (0.49 lb.)
MaterialGraphene + Plastic
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonN/A
Web Client Language1 Language: English
