• Support IEEE 802.3af/at standard. Port 1 supports HiPoE with a maximum of 60W.
• IP40 protection level, high-strength aluminum shell, DIN35 rail installation
• Industrial grade 4-level design, operating temperature from -30~65°C
• Support redundant power supply connection and anti reverse connection
المواصفات الفنية (Specifications)

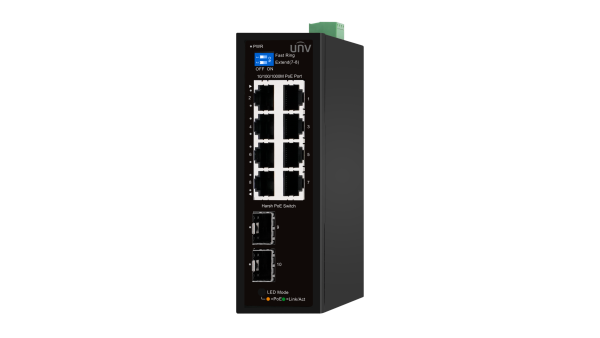

| HS2000-8GT2GP-POE-IN | ||||||||
| Hardware Specification | ||||||||
| Standards | IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z | |||||||
| Ports Type | 8*10/1000Mbps RJ45 PoE Ports 2*1000Mbps SFP Slots | |||||||
| Switching capacity | 20Gbps | |||||||
| Jumbo Frame | 10KBytes | |||||||
| Forwarding performance | 14.88Mpps | |||||||
| Packet Buffer | 4 M bit | |||||||
| Max.PoE Power | Max capacity: 120W Port 1(HiPoE) : Maximum PoE power for single port: 60W. Port2-8 Maximum PoE power for single port: 30W | |||||||
| Max.Power | 130W | |||||||
| MAC | 8K | |||||||
| Transfer Mode | Store-and-forward | |||||||
| Dimensions (W×D×H) | 138*108*51mm | |||||||
| Operating Temperature | -30°C to 65 °C | |||||||
| Operating Humidity | 10% ~ 95% non-condensing | |||||||
| Storage Humidity | 5% ~ 95% non-condensing | |||||||
| Indicator | PWR (Green) Off: Powered off On: Powered on POE(Yellow) On: PoE powered on Off: PoE powered off Ports G5-G6 /G9-G10(Green) On: 10/100/1000Mbps Link normal Off: Link blocked Flashing: Data transmitting | |||||||
| Electrostatic Standard | Air 15KV, Contact 8KV (Class C) | |||||||
| Surge Protection | Common mode 6KV, Differential mode 2KV (Class B) | |||||||
| Power Supply | DC:48-57V, powered by adapter. Max.Power 128W . Adapter: AC100-240V, 50/60Hz | |||||||
| Working Mode | Fast Ring: Fast Ring on, T<2sExtend：Extend mode, ports 7-8 force 10Mbps to extend the transmission distance to 250meters, and automatically activate the PoE watchdog mode | |||||||
| Brand |
|---|
