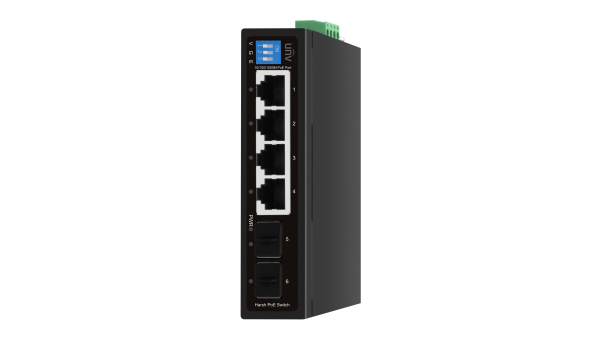

HS2000-4GT2GP-POE-IN

HS2000-4GT2GP-POE-IN

0,00 EGP

10 متوفر في المخزون

SKU: HS2000-4GT2GP-POE-IN

• Support IEEE 802.3af/at standard. Port 1 supports HiPoE with a maximum of 60W.
• IP40 protection level, high-strength aluminum shell, DIN35 rail installation
• Industrial grade 4-level design, operating temperature from -30~65°C
• Support redundant power supply connection and anti reverse connection

المواصفات الفنية (Specifications)

 HS2000-4GT2GP-POE-IN
Hardware Specification
StandardsIEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z
Ports Type4*10/1000Mbps RJ45 PoE Ports
2*1000Mbps SFP Slots
Switching capacity12Gbps
Jumbo Frame10KBytes
Forwarding performance8.92Mpps
Max.PoE PowerMax capacity: 60W
Port 1(HiPoE) : Maximum PoE power for single port: 60W.
Port2-4 Maximum PoE power for single port: 30W
Max.Power65W
MAC2K
Transfer ModeStore-and-forward
Dimensions (W×D×H)120*87*34mm
Operating Temperature -30°C to 65 °C
Operating Humidity10% ~ 95% non-condensing
Storage Humidity5% ~ 95% non-condensing
Indicator PWR (Red)
Off: Powered off
On: Powered on
Ports 1-4 /1-8(Green)
Slow Flashing: 10/100/1000Mbps Link normal
Off: Link blocked
Fast Flashing: Data transmitting
Ports G5-G6 /G9-G10(Green)
On: 10/100/1000Mbps Link normal
Off: Link blocked
Flashing: Data transmitting
Electrostatic StandardAir 8KV, Contact 6KV
Surge ProtectionCommon mode 4KV, Differential mode 2KV
Power Supply DC:48-57V, powered by adapter. Max.Power 68W .
Adapter: AC100-240V, 50/60Hz
Working ModeV: VLAN mode, ports 1-4 are isolated from each other, communicating with ports 5-6, E: Extend mode, when the PoE port is in Extend mode, ports 1-4 force 10Mbps to extend the transmission distance to 250meters, G: PoE watchdog on
ButtonDual color LED selection: default green (link data), switch yellow LED(PoE)
