• Bare Copper conductor
• Excellent performance in the Fluke 100-meter channel test.
• Compliant with RoHS 2.0.
• Stable electrical performance, compliant with TIA-568.2-D, ISO/IEC 11801.
• Suitable for 10BASE-T, 100BASE-TX Fast Ethernet, and 1000BASE-T /1000BASE-TX (Gigabit Ethernet).
المواصفات الفنية (Specifications)
| GC-CAB6-1m-IN | ||||||||
| Cable | ||||||||

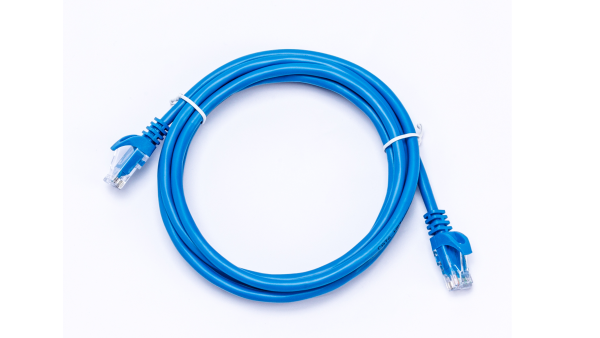

| Product model | U /UTP CAT6 PVC Patch Cord | |||||||
| Test Standard | TIA-568.2-D, ISO/IEC 11801, RoHS 2.0 | |||||||
| Conductor | ||||||||
| Material | Bare Copper (99.95%) | |||||||
| Nom.O.D.(mm) | 7*0.16mm±0.005mm, 26AWG | |||||||
| Insulation | ||||||||
| Material | HDPE | |||||||
| Diameter | 0.80±0.05 mm | |||||||
| Sheath | ||||||||
| Material | PVC | |||||||
| Thickness | 0.55 mm±0.05mm | |||||||
| External O.D. | 5.5mm±0.3mm | |||||||
| Color | Blue(RAL5015) | |||||||
| Physical | ||||||||
| Length | 1m | |||||||
