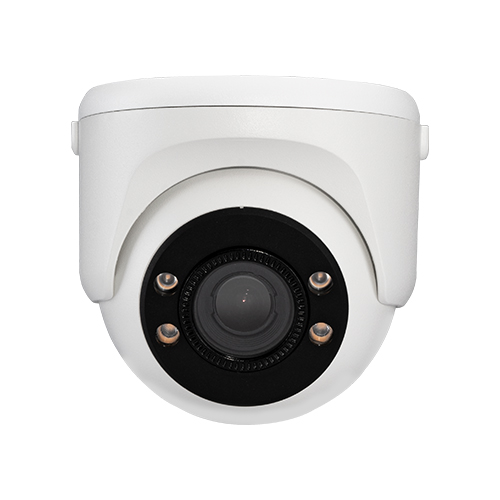

EL-855D48I-S7-S

EL-855D48I-S7-S

0,00 EGP

10 متوفر في المخزون

SKU: EL-855D48I-S7-S

تحميل ورقة البيانات (Download Datasheet PDF)

ZKBio Sense Entry Series IP cameras are the entry level front-end cameras which are especially focusing on the channel market.

As part of the ZKBio Sense Series, the ZKBio Sense Entry Series IP Cameras are also intelligent video surveillance  solution based on ZKTeco Deep-Learning algorithm and Computer Vision technology.

By using advanced & powerful CPU,couple with the embedded intelligent classification algorithm, the ZKBio Sense  Entry IP Cameras can accurately detect and recognize the key type of target: human, meanwhile effectively filter out  the other useless objects such as: animals, leaves, shadows, and rain, etc to reduce the false alarms.

The ZKBio Sense Entry IP Camera are the cost-effective i ntelligent v ideo s olution w ith g ood b alance b etween  economy and efficiency and safety for the entire video surveillance system, can be widely used in different scenario  such as smart school, office, industrial park, community, public security, etc.

المواصفات الفنية (Parameters)

Parameters

  • Camera

  • Model

    EL-855D48I-S7-S

  • Image Sensor

    1/2.7” 5 MP CMOS Sensor

  • Max. Resolution

    2592 (H) × 1944 (V)

  • ROM

    128 MB

  • RAM

    128 MB

  • Scanning System

    Progressive Scan

  • Electronic Shutter Speed

    1/5 s to 1/100,000 s

  • Min. Illumination

    0.01Lux @ F1.4 – 2.8 (AGC on, Color)
    0 lux (IR on, B & W)

  • S/N Ratio

    ≥ 50 dB

  • IR Range

    80 m

  • Illuminator On/Off Control

    Auto / Manual

  • Illuminator Number

    4 * IR LED

  • Smart IR

    Support

  • Angle Adjustment for Installation

    Pan: 0° to 360°
    Tilt: 0° to 90°
    Rotation: 0° to 360°

  • TV System

    PAL/NTSC

  • Image Settings

    Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, adjustable by platform software or web browser

  • Software Reset Default

    Support

  • General Function

    Heartbeat, Mirror, Privacy mask, Log, Password reset

  • Lens

  • Lens Type

    Motorized Varifocal

  • Lens Mount

    M22

  • Mount Type

    Board-in

  • Focal Length

    2.8 – 12 mm

  • Max. Aperture

    F1.4 – 2.8

  • Optical Zoom

    4X

  • Field of View

    FOV: 38° – 98°
    Horizontal: 108° – 33°
    Vertical: 57° – 18°
    Diagonal: 130° – 38°

  • Iris Control Type

    Fixed

  • Close Focus Distance

    2 m

  • DORI Distance

  • Lens

  • Telephoto

    Detect: 125.6 m
    Observe: 57.7 m
    Recognize: 26.3 m
    Identify: 12.5 m

  • Wide

    Detect: 45.8 m
    Observe: 19.6 m
    Recognize: 11.0 m
    Identify: 6.0 m

  • Video

  • Video Compression

    H.265 / H.264

  • Max. Video Frame Rate

    Main stream: 50Hz (PAL): 25fps (2592 × 1944, 2560 × 1440, 2304 × 1296, 1920 × 1080)
    60Hz (NTSC): 30fps (2592 × 1944, 2560 × 1440, 2304 × 1296, 1920 × 1080)

    Sub stream: 50Hz (PAL): 25 fps (704 × 576, 640 × 480, 640 × 360)
    60Hz (NTSC): 30 fps (704 × 576, 640 × 480, 640 × 360)

  • Video Stream Capability

    Dual streams

  • Bit Rate Control

    CBR / VBR

  • Video Bit Rate

    H.264: 192kbps – 8Mbps
    H.265: 224Kbps – 8Mbps

  • Day / Night

    Auto (ICR) / Color / B & W

  • BLC

    Support

  • HLC

    Support

  • WDR

    TWDR

  • Scene Self-adaptation

    Support

  • White Balance

    Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp adaptive

  • Gain Control

    Low, Mid low, Mid, Mid high, High

  • Noise Reduction

    2D / 3D NR

  • Motion Detection

    Smart / Ordinary (4 areas)

  • Region of Interest (ROI)

    Support (4 areas, Level 1 to 6)

  • Defog

    N/A

  • Mirror

    Support

  • Image Rotation

    0° / 90° / 180° / 270° / Horizontal / Vertical

  • Privacy Masking

    4 areas

  • Corridor Mode

    Support

  • Digital Zoom

    Support

  • Anti-flicker

    Support

  • Audio

  • Built-in MIC

    N/A

  • Speaker

    N/A

  • Audio Compression

    G.711 ulaw

  • Environment Noise Filtering

    Support

  • Audio Sampling Rate

    8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz

  • Audio Bit Rate

    64 Kbps (G.711 ulaw)

  • Intelligent Video Analytics

  • IVA (Perimeter Protection)

    Line Crossing, Area detection, Smart Motion Detection (triggered by human target classification)

  • Intelligent Search

    Support fast retrieval by human target classification

  • Intelligent Video

    Support fast retrieval by human target classification, playback and backup

  • Face Detection

  • Face Templates

    N/A

  • Face Quality Filtering

    N/A

  • Face Detected Per Frame

    N/A

  • Detection Area

    N/A

  • Detected Face Size

    N/A

  • Capture Response

    N/A

  • Alarm

  • Basic Alarm Event

    Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm

  • Smart Alarm Event

    Line Crossing, Area detection, Smart Motion Detection (triggered by human target classification)

  • Alarm Linkage Actions

    Notify surveillance center, trigger recording, trigger capture, send email

  • NETWORK

  • Simultaneous Live View

    Up to 15 channels

  • Network

    1 RJ45 10 M / 100 M self-adaptive Ethernet port

  • SDK and API

    Support SDK, API and ONVIF

  • Cyber Security

    Video encryption; firmware encryption; configuration encryption; account lockout; security logs; IP filtering; trusted boot; trusted execution; trusted upgrade; password protection; complicated password; basic and digest authentication for HTTP / HTTPS; TLS; IP address filter; Security Audit Log

  • Protocol

    TCP / IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket

  • Interoperability

    ONVIF Profile S / T

  • User / Host

    Up to 256 users can be added. 3 user levels: admin, operator and guest

  • Network Storage

    FTP

  • Web Browser

    IE / Edge / Firefox / Chrome / Safari

  • Management Software

    AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS / ZKBio CVSecurity / ZKBio CVAccess

  • Mobile Application

    AntarView Pro+ (iOS & Android)

  • On-Board Storage

    N/A

  • Operation System

    Windows

  • P2P Cloud Service

    Support

  • Port

  • Audio Input

    1 (RCA port)

  • Audio Output

    1 (RCA port)

  • Alarm Input

    N/A

  • Alarm Output

    N/A

  • INTERFACE

  • Reset Button

    N/A

  • ANR

    N/A





















































































































































































































































































































































































































































































  • USB

    N/A






































  • RS485

    N/A

  • General

  • Power

  • Power Supply

    PoE (IEEE802.3af, Class 3), DC 12 V±10% reverse polarity protection

  • Power Consumption

    Basic ≤ 3 W (12 VDC); 4.5 W (PoE)

  • Power Interface

    Ø 5.5 mm coaxial power plug

  • Structure

  • Casing Material

    Aluminium Alloy

  • Dimensions

    102 × 93.2 (mm)

  • Net Weight

    0.69 KG

  • Gross Weight

    0.55KG

  • Environment

  • Operating Conditions

    –30 °C to +60 °C (–22 °F to +140 °F) /Humidity 95% or less (non-condensing)

  • Storage Conditions

    –30 °C to +60 °C (–22 °F to +140 °F) /Humidity 95% or less (non-condensing)

  • Ingress Protection Rating

    IP67

  • Certifications

  • Certificates

    ISO9001, ISO14001, CE, FCC
