المواصفات الفنية (Specifications)

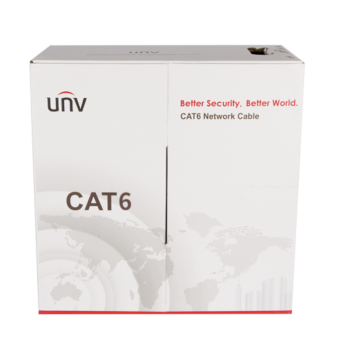

| CAB-LC3100B-E1-IN | ||||||||
| Cable | ||||||||
| Product model | CAB-LC3100B-E1-IN | |||||||
| Product specification | HSYV-6 4×2×0.49 | |||||||
| Test Standard | Fluke Test 90m | |||||||
| Packing length | 305±1 m | |||||||
| Rip-cord | Yes | |||||||
| Seperator | Yes | |||||||
| Ambient temperature | -20℃～75℃ | |||||||
| Conductor | ||||||||
| Material | Solid-Bare Copper | |||||||
| AWG | 24 | |||||||
| Nom.O.D.(mm) | 0.49±0.01 mm | |||||||
| DC resistance | ≤98 Ω/km | |||||||
| Insulation | ||||||||
| Material | HDPE | |||||||
| Diameter | 0.89±0.05 mm | |||||||
| Color | Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown | |||||||
| Sheath | ||||||||
| Material | PVC | |||||||
| External O.D. | 5.6±0.3 mm | |||||||
| Thickness | 0.55±0.1 mm | |||||||
| Tensile strength | >13.8 Mpa | |||||||
| Color | Orange | |||||||
| Surface Printing | ||||||||
| Letter height | 3.0±0.3 mm | |||||||
| Print error / Space | 1±0.005 m | |||||||
| Color | Black | |||||||
| Packing | ||||||||
| Packing | Pallet | |||||||
| Once packing dimension | 420mm*205mm*420mm | |||||||
