| Specifications | |
|---|---|
| Model | CS-C8W (4MP,W1) |
| Camera | |
| Image Sensor |
1/2.7” Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens |
4mm @ F1.6, view angle: 87° (Horizontal), 105° (Diagonal) |
|
6mm @ F1.6, view angle: 55° (Horizontal), 66° (Diagonal) |
|
| PT Angle | Pan: 352°, Tilt: 95° |
| Minimum Illumination |
0.5 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night |
IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| Black & White Night | 30 m / 98 ft. |
| Video & Audio | |
| Max. Resolution | 2560 × 1440 |
| Frame Rate |
Max. 30 fps, self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate |
Quad HD; Full HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2Mbps |
| Network | |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security |
64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate |
11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
RJ45 × 1 (10 M / 100 M Adaptive Ethernet Port) |
| Storage | |
| Local Storage |
MicroSD card slot (Max. 256 GB) |
| Cloud Storage | EZVIZ Cloud Storage |
| Function | |
| Smart Alarm |
AI-powered human shape detection |
| Customized Alert Area | Supports |
| Audio | Supports two-way talk |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| General | |
| Operating Conditions |
-30°C ~ 60°C ( -22°F to 140°F ), humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof design |
| Power Supply | DC 12V / 1A |
| Power Consumption | Max. 6W |

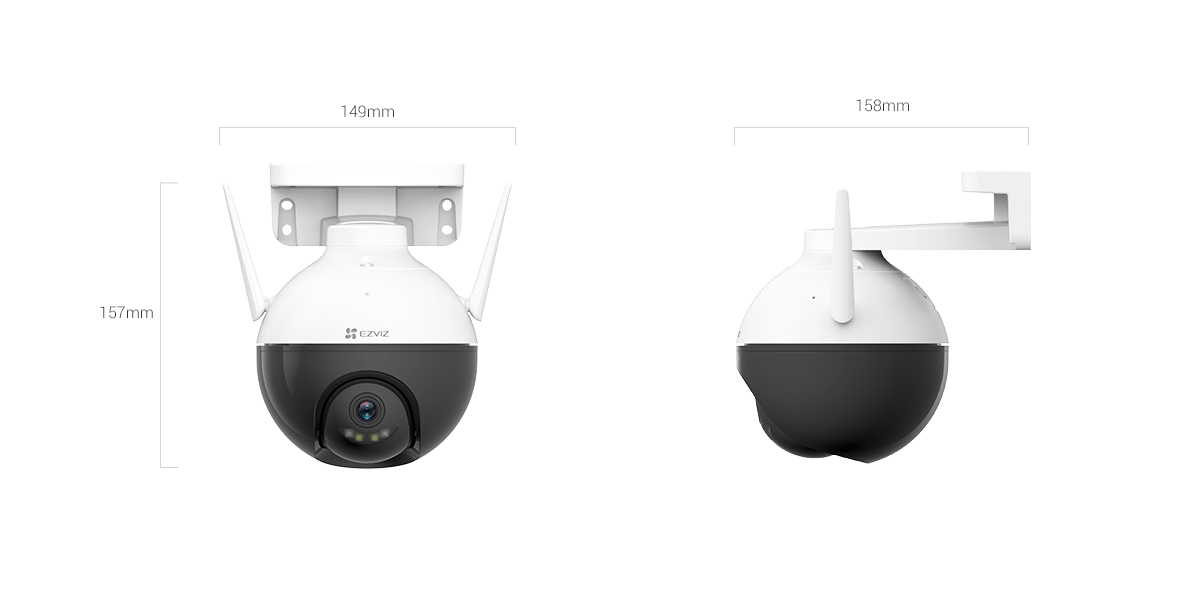

| Dimensions |
158 x 157 x 149 mm (6.22 x 6.18 x 5.87 inch) |
| Packaging Dimensions |
197 x 185 x 205 mm (7.76 x 7.28 x 8.07 inch) |
| Weight (With Package) | 885 g (31.22 oz) |
| Net Weight | 510 g (17.99 oz) |
| In the box | |
| In the box | – C8W Camera |
|
– 1.5-Meter Power Adapter |
|
| – Screw Kit | |
| – Waterproof Kit | |
| – Drill Template | |
|
– Regulatory Information |
|
| – Quick Start Guide | |
| Certifications | |
| Certifications |
UL / FCC / CE / WEEE / REACH / RoHS / UKCA |
C8W
0,00 EGP
10 متوفر في المخزون
| Brand |
|---|
Reviews
There are no reviews yet.
