| Specifications | |
|---|---|
| Model | CS-C8W-A0-1H3WKFL |
| Camera | |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-Adaptive shutter |
| Lens |
4mm@ F1.6, viewing angle:87° (Horizontal),105°(Diagonal) 6mm@ F1.6, viewing angle:55° (Horizontal), 66°(Diagonal) |
| PT Angle | Pan: 340°, Tilt: 80° |
| Minimum Illumination |
0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night |
IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Night Vision Distance | Up to 98 ft / 30 m |
| Video & Audio | |
| Max. Resolution | 2K |
| Frame Rate |
Max: 30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate |
Quad HD; Full HD; Hi-Def; Standard. Adaptive bit rate |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2 Mbps |
| Network | |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK / WPA2-PSK |
| Transmission Rate |
11b: 11 Mbps,11g: 54 Mbps,11n: 72 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Storage | |
| Local Storage |
Supports microSD card (Up to 256 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage (Subscription required) |
| Function | |
| Smart Alarm |
AI-Powered Human / Vehicle Shape Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat,Password Protection, Watermark |
| General | |
| Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V / 1A |
| Power Consumption | MAX. 6W |

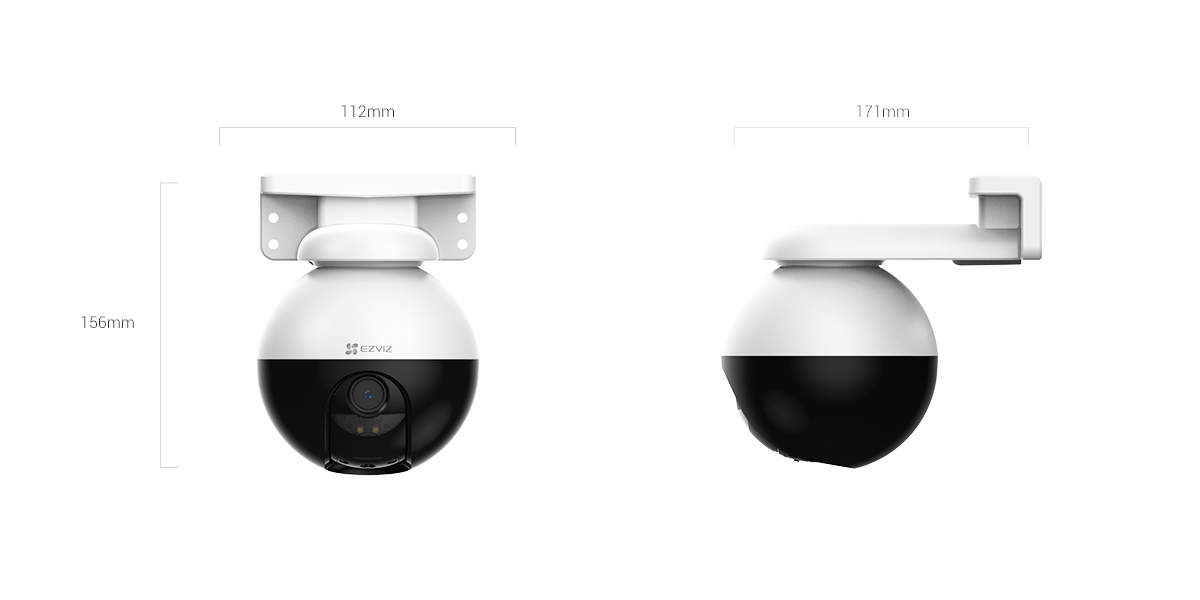

| Dimensions |
112 × 171 × 156 mm (4.41× 6.73 × 6.15 inch) |
| Packaging Dimensions |
187 × 174 × 186 mm (7.36 × 6.85 ×7.34 inch) |
| Weight |
Product: 605 g (21.34 oz) With package: 992 g (34.99 oz) |
| In the box | |
| In the box | – C8W Pro 2K Camera |
| – Power Adapter | |
| – Screw Kit | |
| – Waterproof Kit | |
| – Drilling Template | |
|
– Regulatory Information |
|
| – Quick Start Guide | |
| Certifications | |
| Certifications |
UL / FCC / CE / WEEE / REACH / RoHS / UKCA |
C8W Pro 2K
0,00 EGP
10 متوفر في المخزون
| Brand |
|---|
Reviews
There are no reviews yet.
