| Model Parameters | |
|---|---|
| Model | CS-C3W-A0-3H4WFRL |
| Camera | |
| Image Sensor |
1/2.7”Progressive Scan CMOS |
| Minimum Illumination |
0.01 lux @(F1.6, AGC ON), 0 lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens |
2.8 mm @F1.6, view angle: 100° horizontal, 121° diagonal 4 mm @F1.6, view angle: 82° horizontal, 97° diagonal |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.265 / H.264 |
| Video Bit Rate |
Quad HD; Full HD; HD; Standard. Adaptive bit rate. |
| General | |
| Working Temperature |
-30 °C to 60 °C (22 °F to 140 °F) |
| Working Humidity |
95% or less (non-condensing) |
| Power Supply | DC 12 V / 1 A |
| Power Consumption | Max. 6 W |
| IP Grade | IP67 |
|
Night Vision Distance (Black/White Night Vision Mode) |
Max. 30 m (98.43 ft.) |

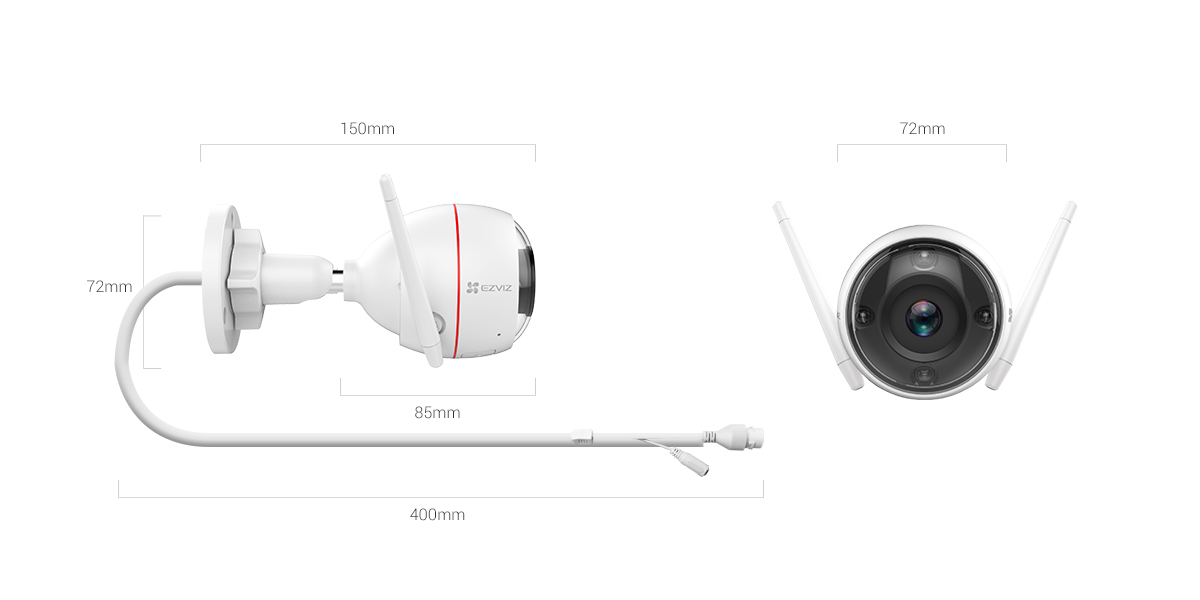

| Dimensions |
72 mm × 72 mm × 150 mm (2.83” × 2.83” × 5.91”) |
| Packaging Dimensions |
252 mm × 110 mm × 92 mm (9.92” × 4.33” × 3.62”) |
| Net Weight | 395 g(0.87 lbs) |
| Network | |
| User Defined Alarm Tones | Supports |
| Wi-Fi Pairing | AP Pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Max. Bitrate | 2M |
| Wi-Fi | |
| Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps |
| Image | |
| Max. Resolution | 2560 × 1440 |
| Frame Rate |
Max: 30 fps; Self-adaptive during network transmission |
| Interface | |
| Storage |
MicroSD card slot (Max. 256 GB) |
| Wired Network |
RJ45 × 1(10 M / 100 M Adaptive Ethernet Port) |
| In the box | |
| In the box |
C3W Pro (4MP) Color Night Vision Camera ; Power Adapter (1.5 m) ; Mounting Template ; Screw Kit ; Waterproof Kit ; Quick Start Guide |
| Certifications: | |
| Certifications: |
UL / FCC / CE / WEEE / REACH / RoHS |
