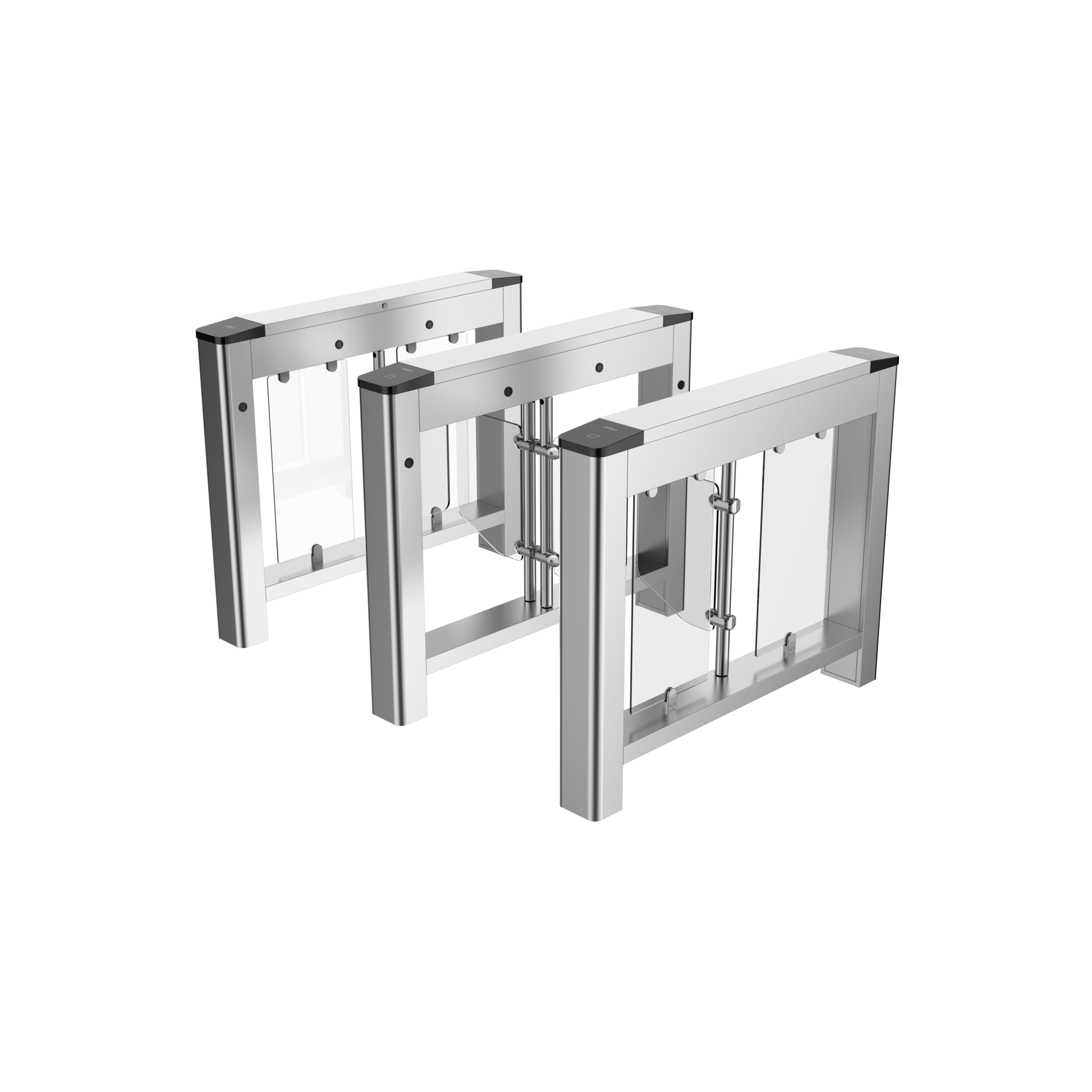

Dahua Swing Barrier

المميزات الرئيسية (Key Features)

> 304 stainless steel cabinet with a thickness of 1.0 mm.
> Includes 4 pairs of IR detectors.
> Brushless DC servomotor.
> Automatically locks when the unlock time expires.
> Sound and light alarm with adjustable volume.
> Acrylic arm with a length of 600 mm.
> MCBF (Mean Cycles between Failures) is higher than 3 million times.
> Supports normally opening the fire passage and outputting alarm signals.
> Offers mechanical anti-squeeze and IR anti-squeeze.
> Supports anti-collision.
> Offers 3 security level modes that are suitable for different scenes.
> Features 9 combinations of passage modes. You can build the combinations using authorized, prohibited and free for entry and exit.
> Supports configuring the speed it opens and closes, passing time for people, and delaying the closing time.
> Supports second authentication, and memorizing passing data for entry and exit.
> Supports people counting.
> The sound and light alarm are triggered when the system detects events such as intrusion, tailing, reverse intrusion, staying in area,
abnormal unlock, jumping the barrier, barrier failure and IR fault.
> Supports combining multiple authentication methods together such as card reader board, face, fingerprint, QR code and CPU card to
create a variety of authentication methods.
> The arm can be manually pushed when the device is powered off (This is because an energy storage capacitor is not included).

المواصفات الفنية (Specifications)
